UH200 v2/200A (12~24S)
Name
  • UH200 v2/200A (12~24S)
Type
  • BLDC
Parameters
  • Continuous Current

    200A (under good cooling conditions)

  • instantaneous Current

    200A

  • Input

    12~24S LiPo

  • BEC

    5V/200mA output

  • PWN Input Signal Voltage

    3.3V/5V (compatible)

  • Throttle Pulse Width

    1050us-1940us

  • Weight (excluding wire)

    ≈580g

  • Power/Motor lines

    8AWG

  • Protective Grade

    IPX4

  • Working Temperature

    -20~65℃

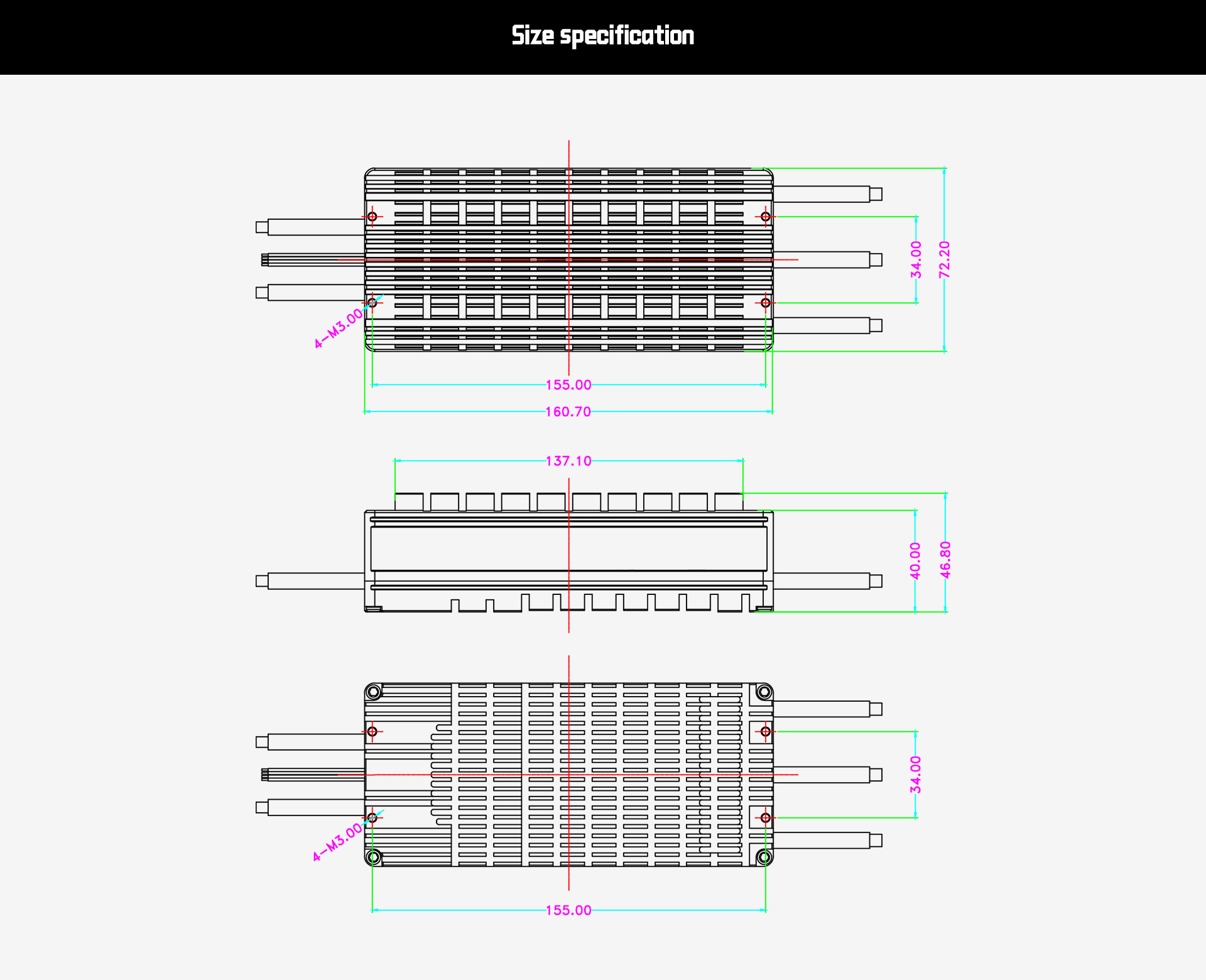

  • Size(L*W*H)/mm

    161.0*72.2*46.8mm

  • Communication interface

    CAN

Functions and features
  • Online Upgrade

    available

  • Current protection

    available

  • Short circuit protection

    available

  • Locked-rotor protection

    available

  • Voltage protection

    available

  • Temperature protection

    available

  • Boot Protection

    available

  • Throttle loss protection

    available

  • Error signal output

    available

  • Speed Signal Output

    available
