UE100F v2/100A (96~192S)
Name
  • UE100F v2/100A (96~192S)
Type
  • FOC
Parameters
  • Continuous current

    100A (under good cooling conditions)

  • limiting current

    100A

  • Input

    96~192S LiPo

  • BEC

    5V/200MA output

  • PWM InputSignal Voltage

    3.3V/5V (compatible)

  • Throttle Pulse Width

    1050us-1940us

  • Weight (excluding wire )

    ≈1500g

  • Power/Motor lines

    10AWG

  • Protective Grade

    IPX4

  • Working Temperature

    -20~65℃

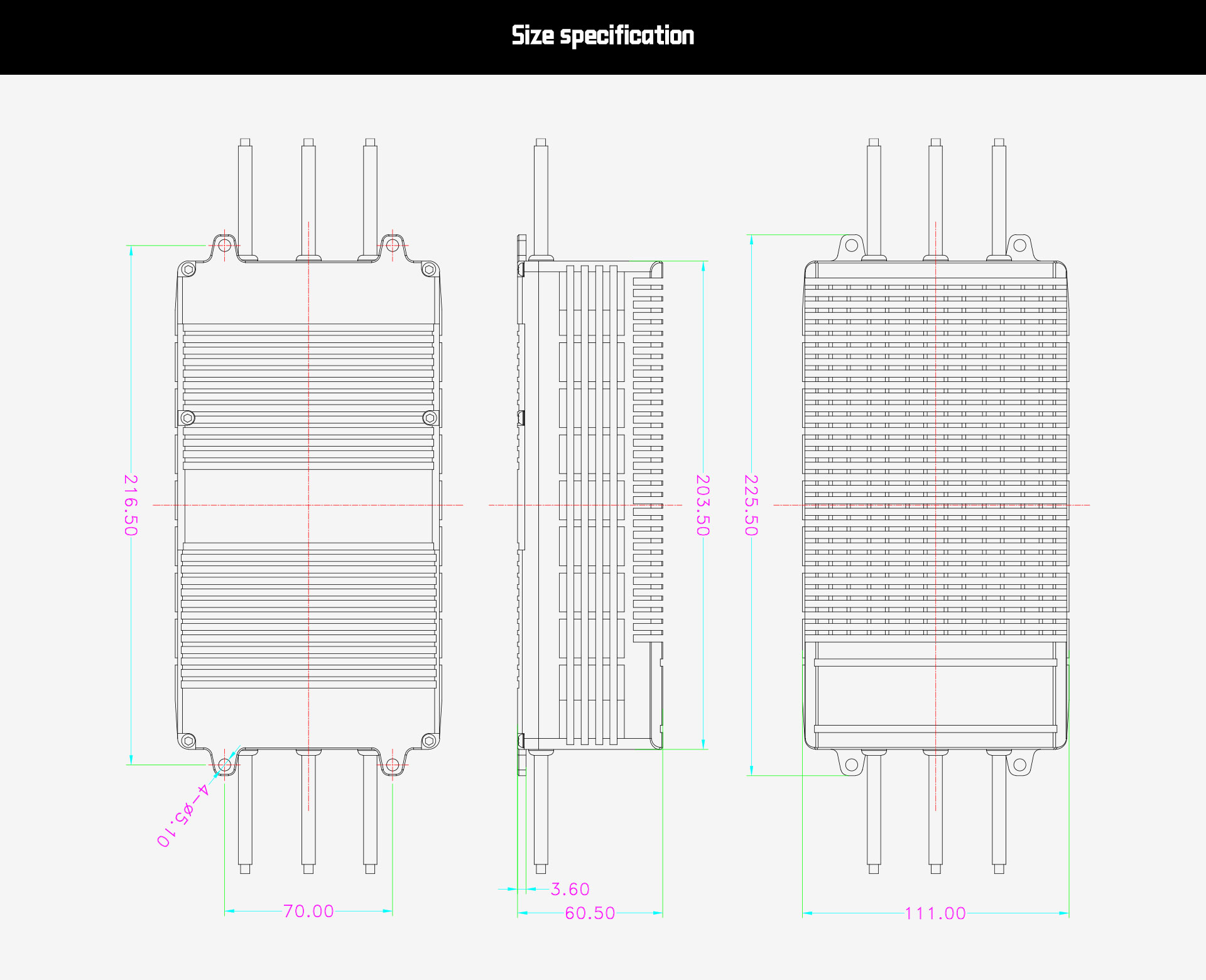

  • Size(L*W*H)/mm

    225.5*111*60.50mm

  • Communication interface

    DroneCAN
