K100/100A (5~12S)
Name
  • K100/100A (5~12S)
Type
  • BLDC
Parameters
  • Continuous Current

    100A (under good cooling conditions)

  • Supported voltage

    15.6V~54.8V

  • Input

    5~12S LiPo

  • Weight (excluding wire )

    ≈40g

  • Protective Grade

    IPX4

  • Working Temperature

    -25~60℃

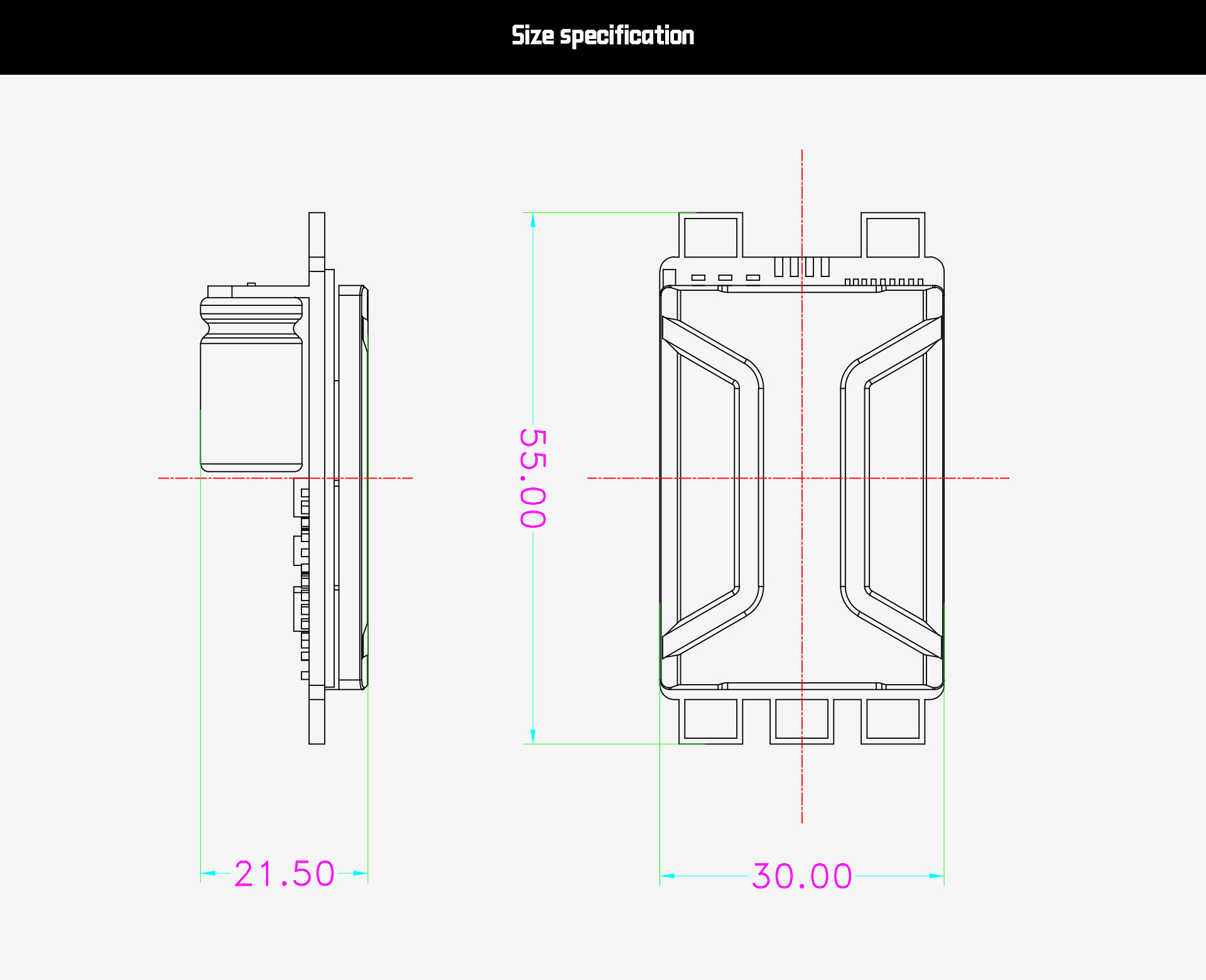

  • Size(L*W*H)/mm

    55.0*30.0*21.5mm

  • Supported Throttle Protocols

    Oneshot125 (125–250 μs), Oneshot42 (42–84 μs),

  • Supported Throttle Protocols

    Dshot300 (3.33 μs), Dshot600 (1.67 μs),Dshot150 (6.67 μs),

Functions and features
