UF160F v2/160A (48~96S)
Name
  • UF160F v2/160A (48~96S)
Type
  • FOC
Parameters
  • Continuous current

    160A (under good cooling conditions)

  • limiting current

    160A

  • Input

    48~96S LiPo

  • BEC

    5V/200MA output

  • PWM InputSignal Voltage

    3.3V/5V (compatible)

  • Throttle Pulse Width

    1050us-1940us

  • Weight (excluding wire )

    ≈1350g

  • Power/Motor lines

    8AWG

  • Protective Grade

    IPX4

  • Working Temperature

    -20~65℃

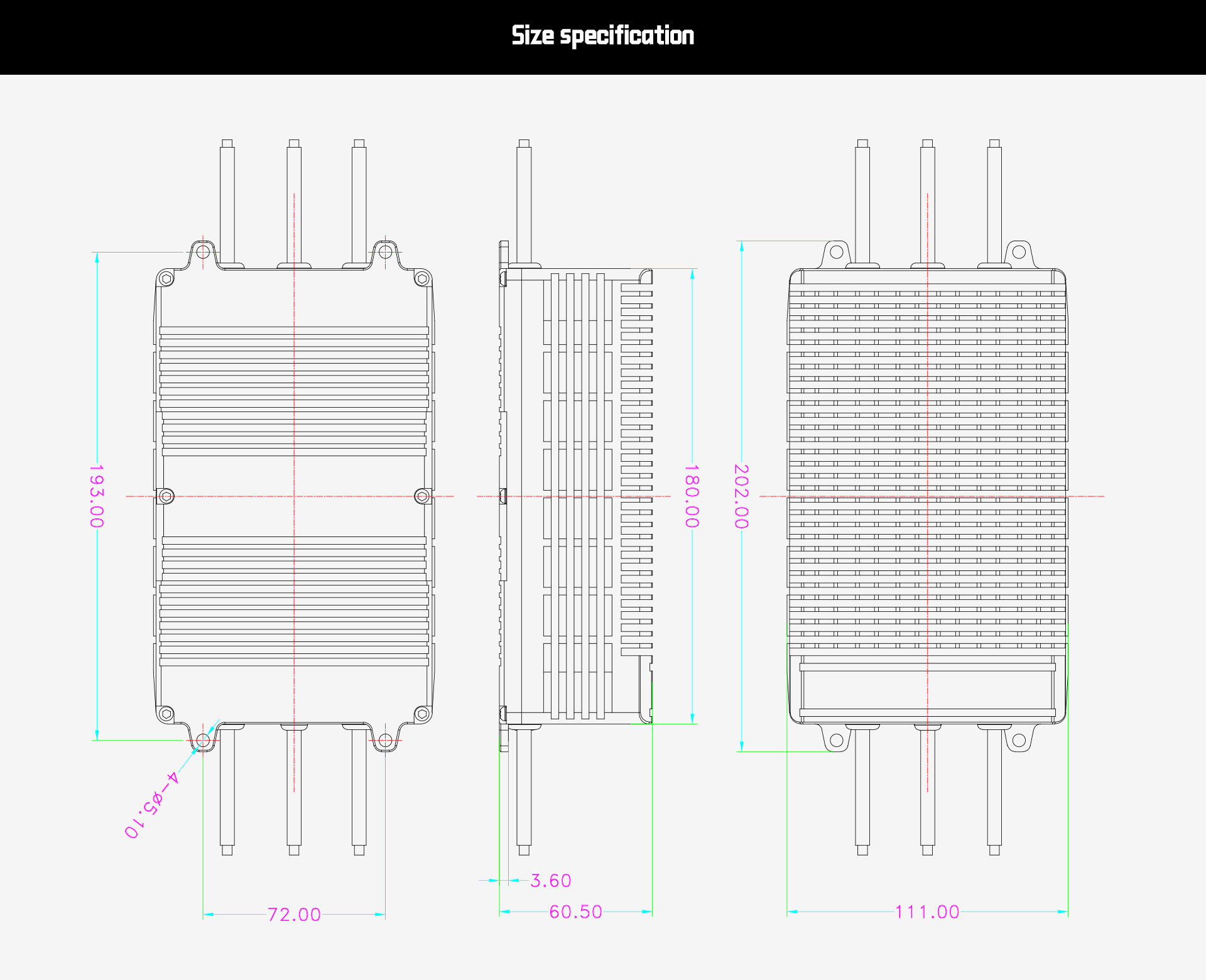

  • Size(L*W*H)/mm

    202*111*60.5mm

  • Communication interface

    DroneCAN
