WM200 v2/200A (5~22S)
Name
  • WM200 v2/200A (5~22S)
Type
  • BLDC
Parameters
  • Cont./limited Current

    200A (under good cooling conditions)

  • Input

    5~22S LiPo

  • BEC

    None

  • PWM InputSignal Voltage

    3.3V/5V (compatible)

  • Throttle Pulse Width

    1050us-1940us

  • Compatible Signal Frequency

    50-500Hz

  • Weight (excluding wire )

    ≈460g

  • Power/Motor lines

    8AWG

  • Protective Grade

    IP67

  • Working Temperature

    -20~65℃

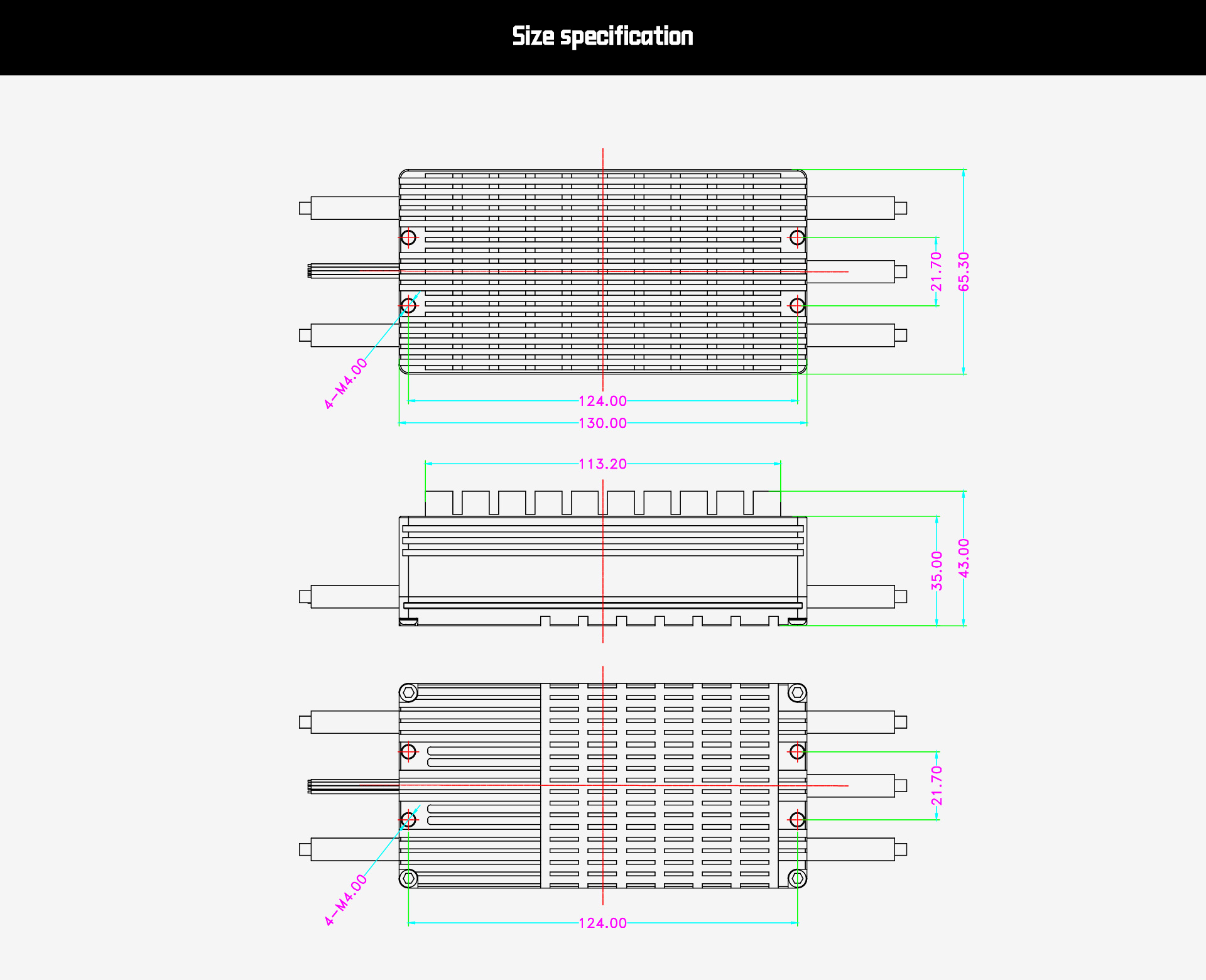

  • Size(L*W*H)/mm

    130.0*65.3*43.0mm

  • Communication interface

    DroneCAN / CyphalCAN

Functions and features
