UF50F v2/50A (48~96S)
Name
  • UF50F v2/50A (48~96S)
Type
  • FOC
Parameters
  • Continuous current

    50A (under good cooling conditions)

  • limiting current

    50A

  • Input

    48~96S LiPo

  • BEC

    5V/200MA output

  • PWM InputSignal Voltage

    3.3V/5V (compatible)

  • Throttle Pulse Width

    1050us-1940us

  • Weight (excluding wire )

    ≈707g

  • Power/Motor lines

    12AWG

  • Protective Grade

    IPX4

  • Working Temperature

    -20~65℃

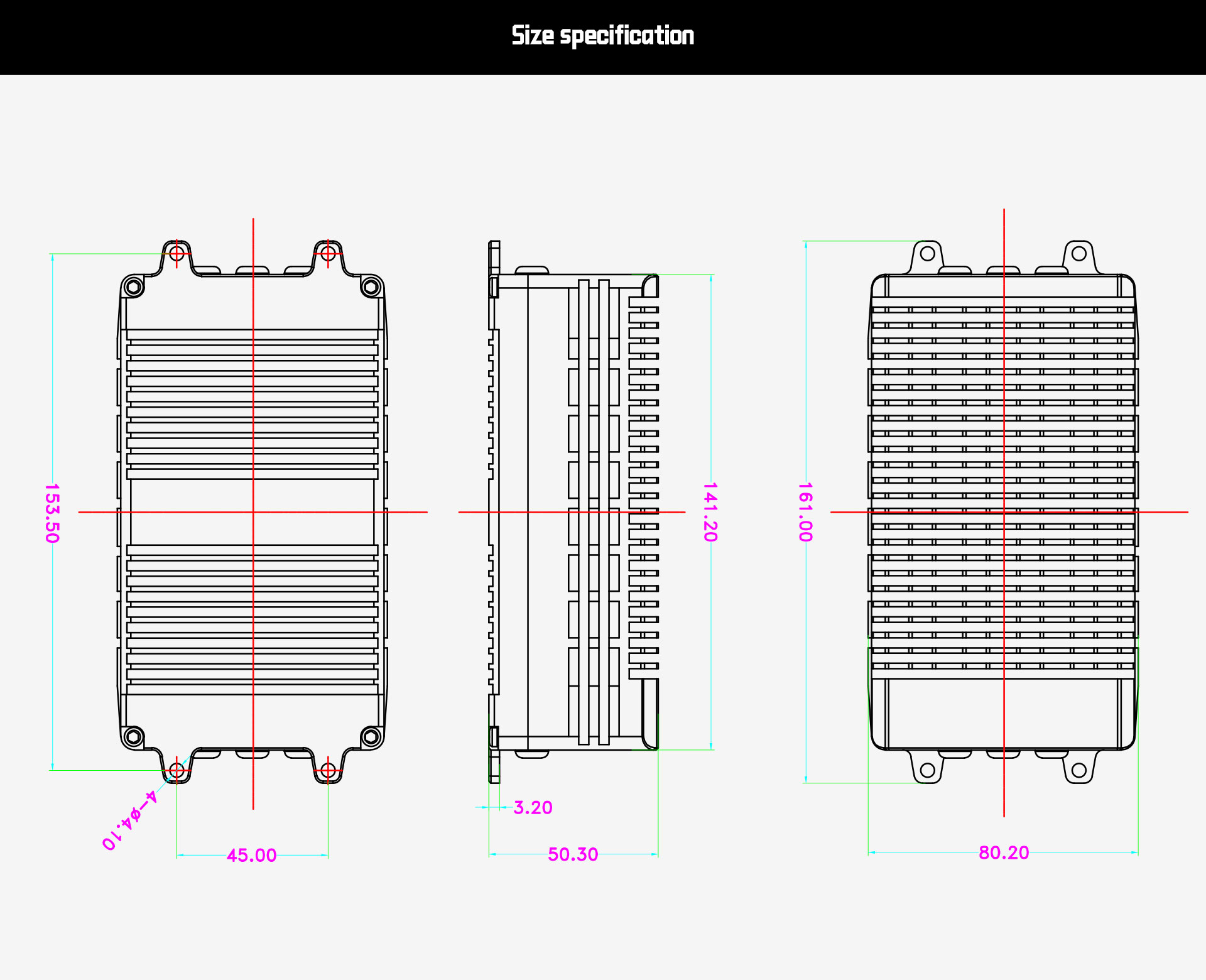

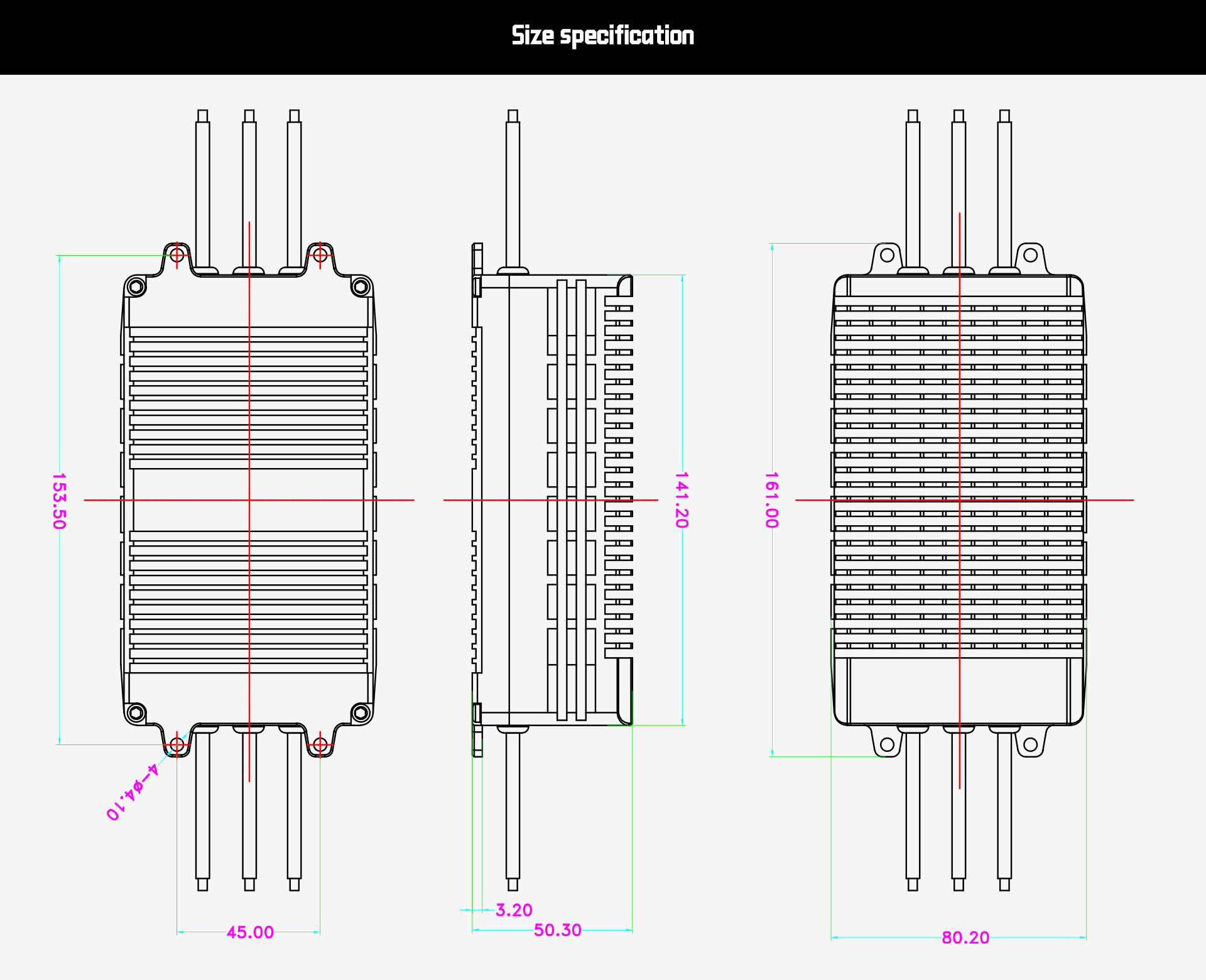

  • Size(L*W*H)/mm

    161.0*80.2*50.3mm

  • Communication interface

    DroneCAN / CyphalCAN

Functions and features
