GL274 Sensored Brushless FOC Motor for RC Crawlers
Name
  • GL274 Sensored Brushless FOC Motor for RC Crawlers
Type
  • BLDC
Parameters
  • Model

    GL4274

  • KV

    1700KV/2000KV

  • Cells

    3-6S

  • No-load Current

    1700KV≤4.0A / 2000KV≤4.5A

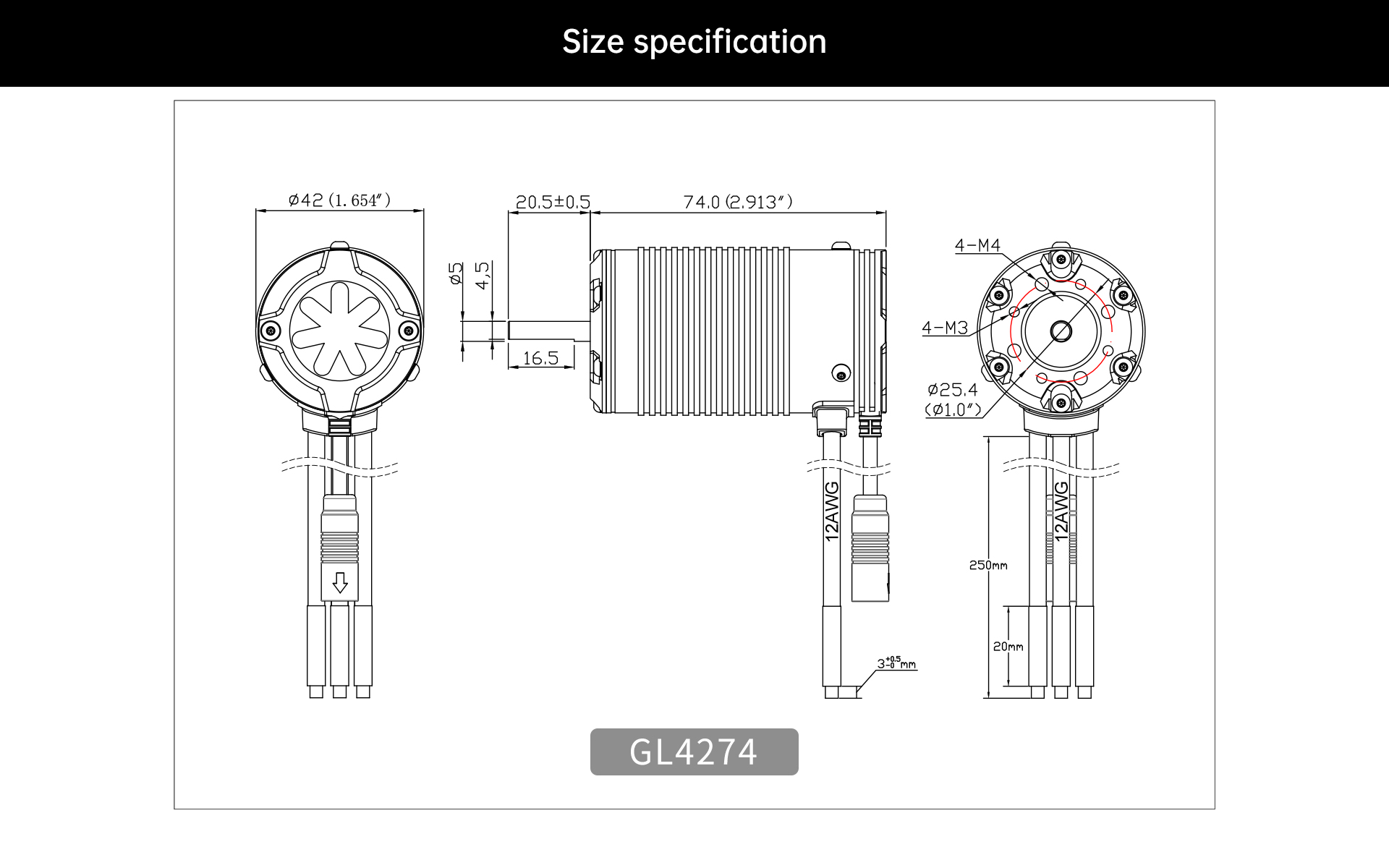

  • Outer Diameter/Length

    Ø42mm(1.654in)/L74mm(2.913in)

  • Shaft Diameter/End Length of

    Ø5mm(0.197in)/L20.5mm(0.728in)

  • Bearing Specification

    D17*d6*T6 Front end (Driving end)

  • Bearing Specification

    D15*d6*T5 Rear end (Terminal)

  • Pairs of Poles

    2 Pairs of poles

  • Application

    On-road/Off-road/Short course

Functions and features
