GL4990 Sensored Brushless FOC Motor for RC Crawlers
Name
  • GL4990 Sensored Brushless FOC Motor for RC Crawlers
Type
  • BLDC
Parameters
  • Model

    GL4990

  • KV

    1500KV

  • Cells

    3-8S

  • No-load Current

    1500KV≤6.5A

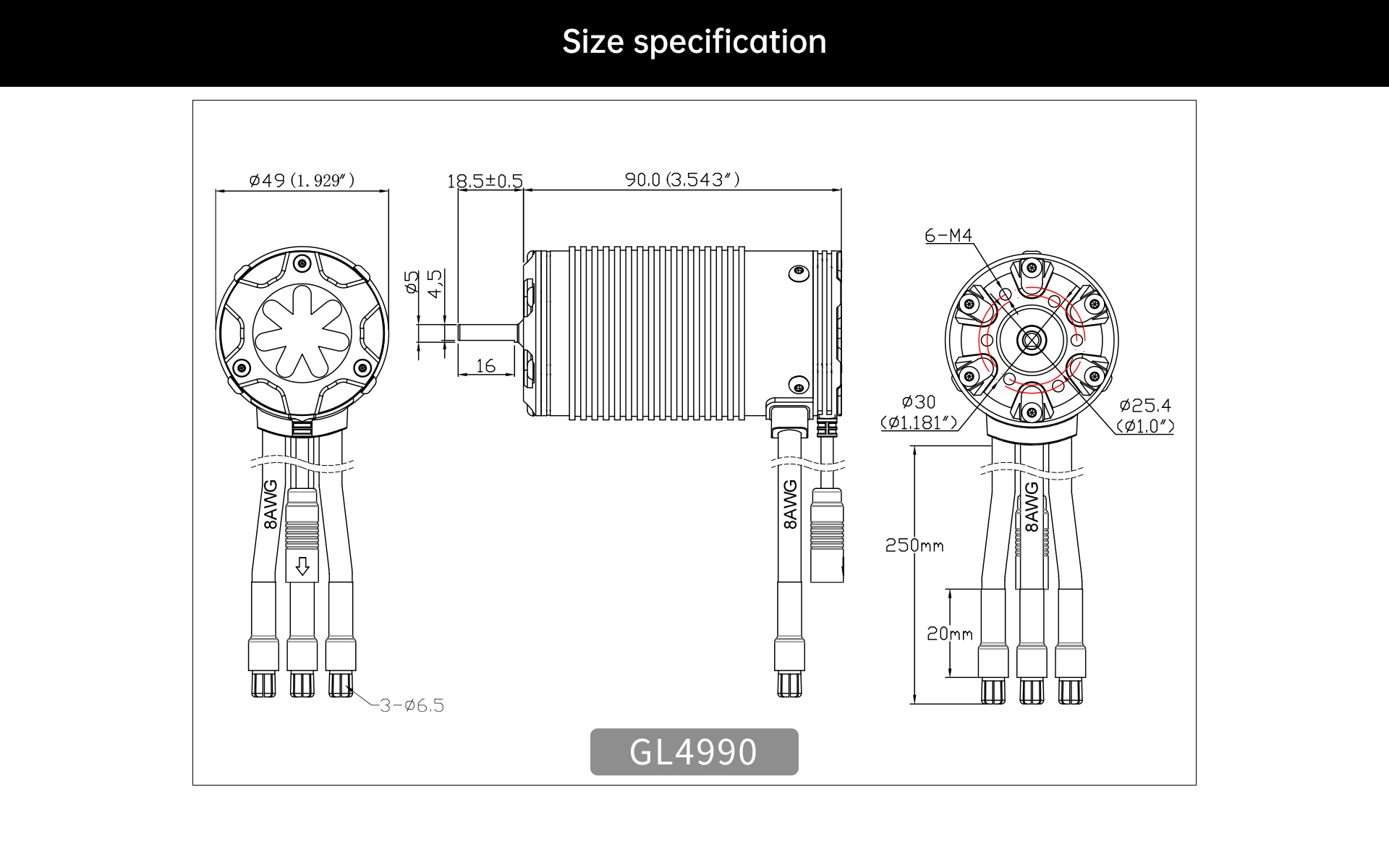

  • Outer Diameter/Length

    Ø49mm(1.929in)/L90mm(3.543in)

  • Shaft Diameter/End Length of

    Ø5mm(0.197in)/L18.5mm(0.728in)

  • Bearing Specification

    D19*d8*T6 Front end (Driving end)

  • Bearing Specification

    D19*d8*T6 Rear end (Terminal)

  • Pairs of Poles

    2 Pairs of poles

  • Application

    On-road/Off-road/Short course

Functions and features
