E4268/E4276 Brushless Motor For RC Cars
Name
  • E4268/E4276 Brushless Motor For RC Cars
Type
  • BLDC
Parameters

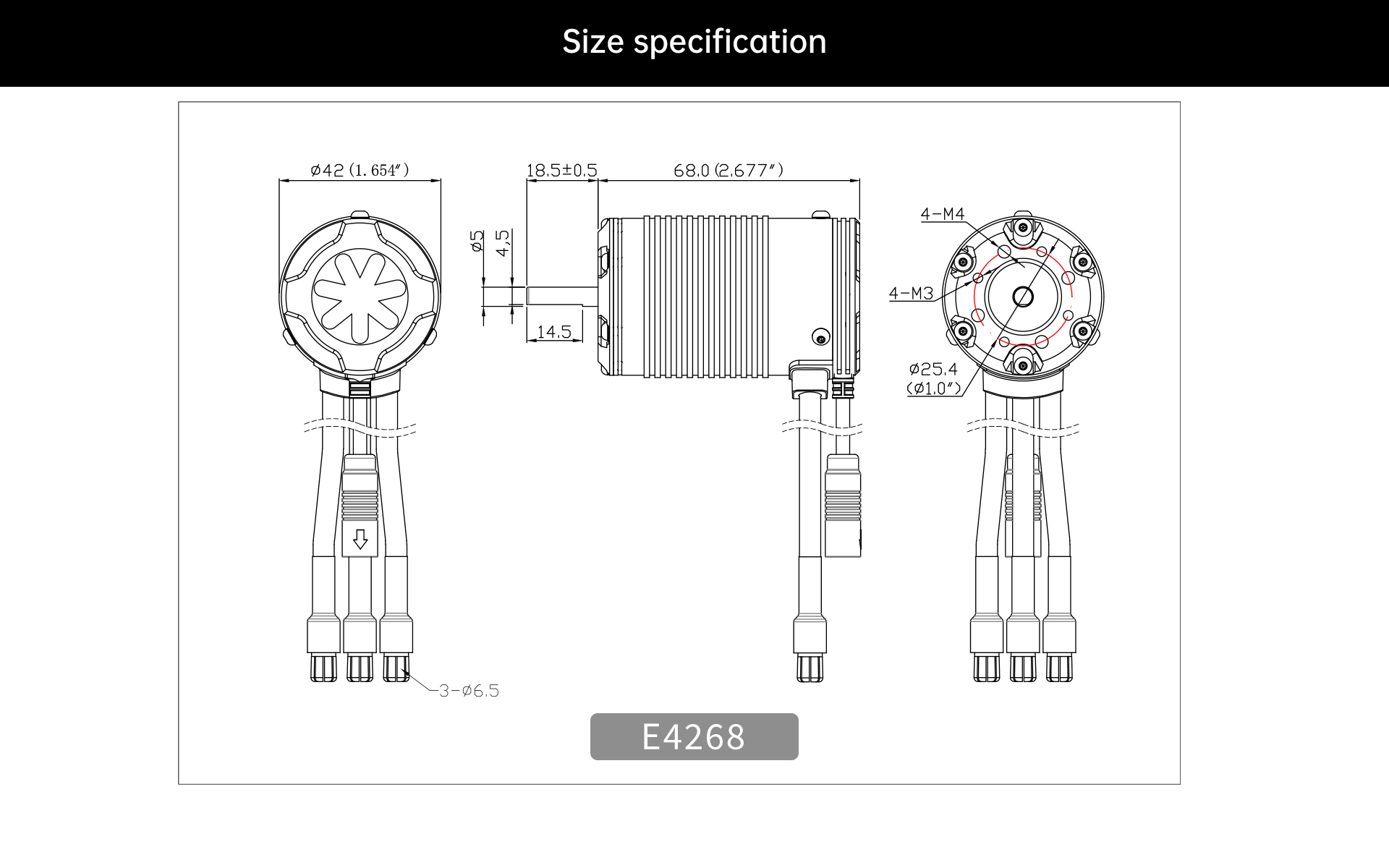

  • Model

    E4268

  • E4268-KV

    2500KV

  • E4268 Cells

    3-4S

  • E4268 No-load Current

    ≤4.7A

  • E4268 Outer Diameter/Length

    Ø42mm(1.654in//L68mm(2.677in)

  • E4268 Shaft Diameter/End Length of

    Ø5mm(0.197in)L18.5mm(0.728in)

  • E4268 Bearing Specification

    D17*d6*T6 Front end (Driving end)

  • E4268 Bearing Specification

    D11*d5*T5 Rear end (Terminal)

  • E4268 Pairs of poles

    2 Pairs of poles

  • E4268 Application

    1/8 Trucks,Off-road，1/10 Monster(Heavy-duty)

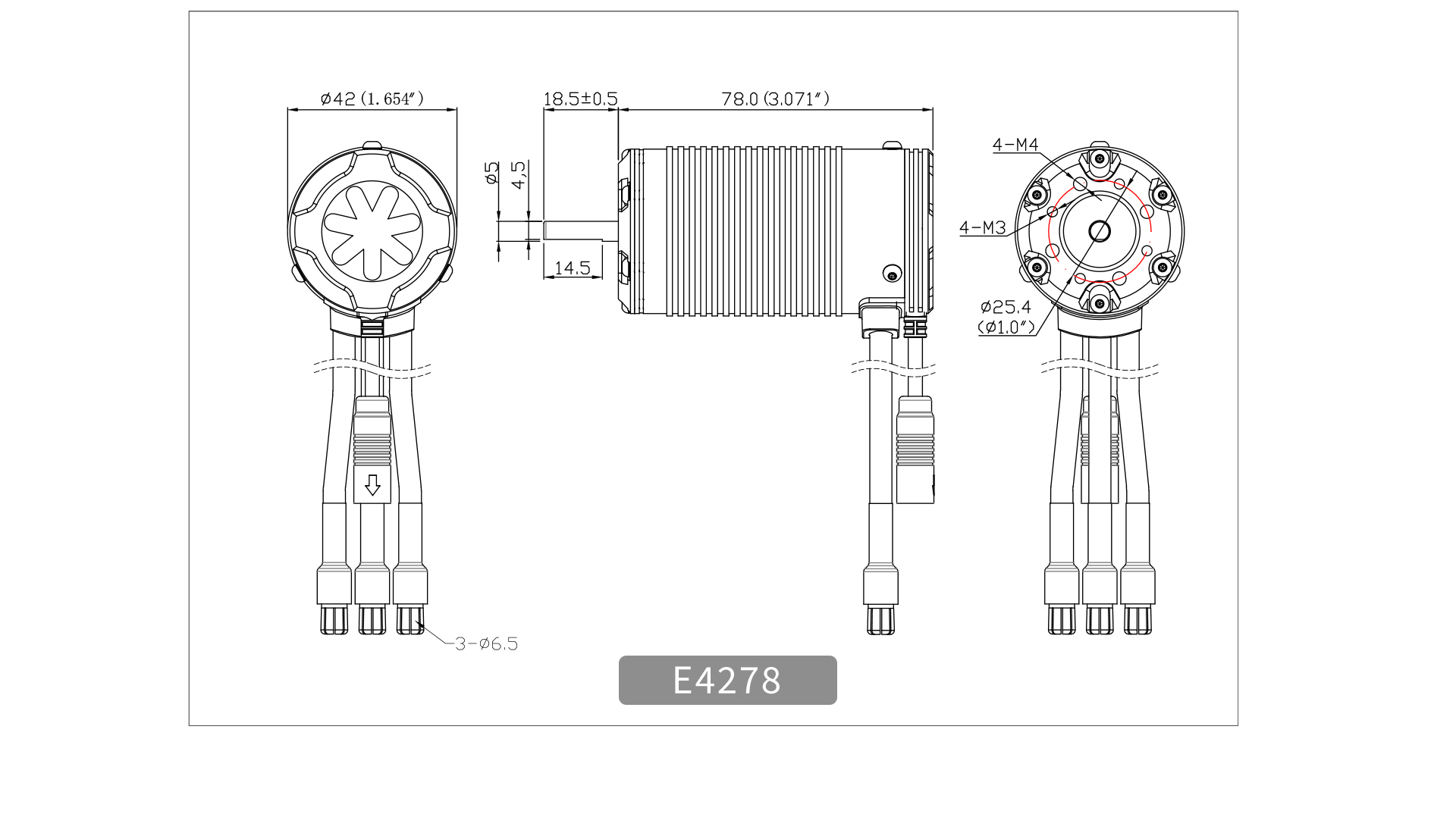

  • Model

    4278

  • E4278-KV

    2250KV

  • E4278 Cells

    3-6S

  • E4278 No-load Current

    ≤5.0A

  • E4278 Outer Diameter/Length

    Ø42mm(1.654in//L78mm(3.071in)

  • E4278 Shaft Diameter/End Length of

    Ø5mm(0.197in)L18.5mm(0.728in)

  • E4278 Bearing Specification

    D17*d6*T6 Front end (Driving end)

  • E4278 Bearing Specification

    D11*d5*T5 Rear end (Terminal)

  • E4278 Pairs of poles

    2 Pairs of poles

  • E4278 Application

    1/8 Truck, Monster

Functions and features
