GL550/GL540L Sensored Brushless FOC Motor for RC Crawlers
Name
  • GL550/GL540L Sensored Brushless FOC Motor for RC Crawlers
Type
  • BLDC
Parameters
  • Model

    GL550

  • GL550-KV

    3300KV

  • GL550-3300KV Cells

    2-3S

  • GL550 No-load Current

    3300KV≤4.6A

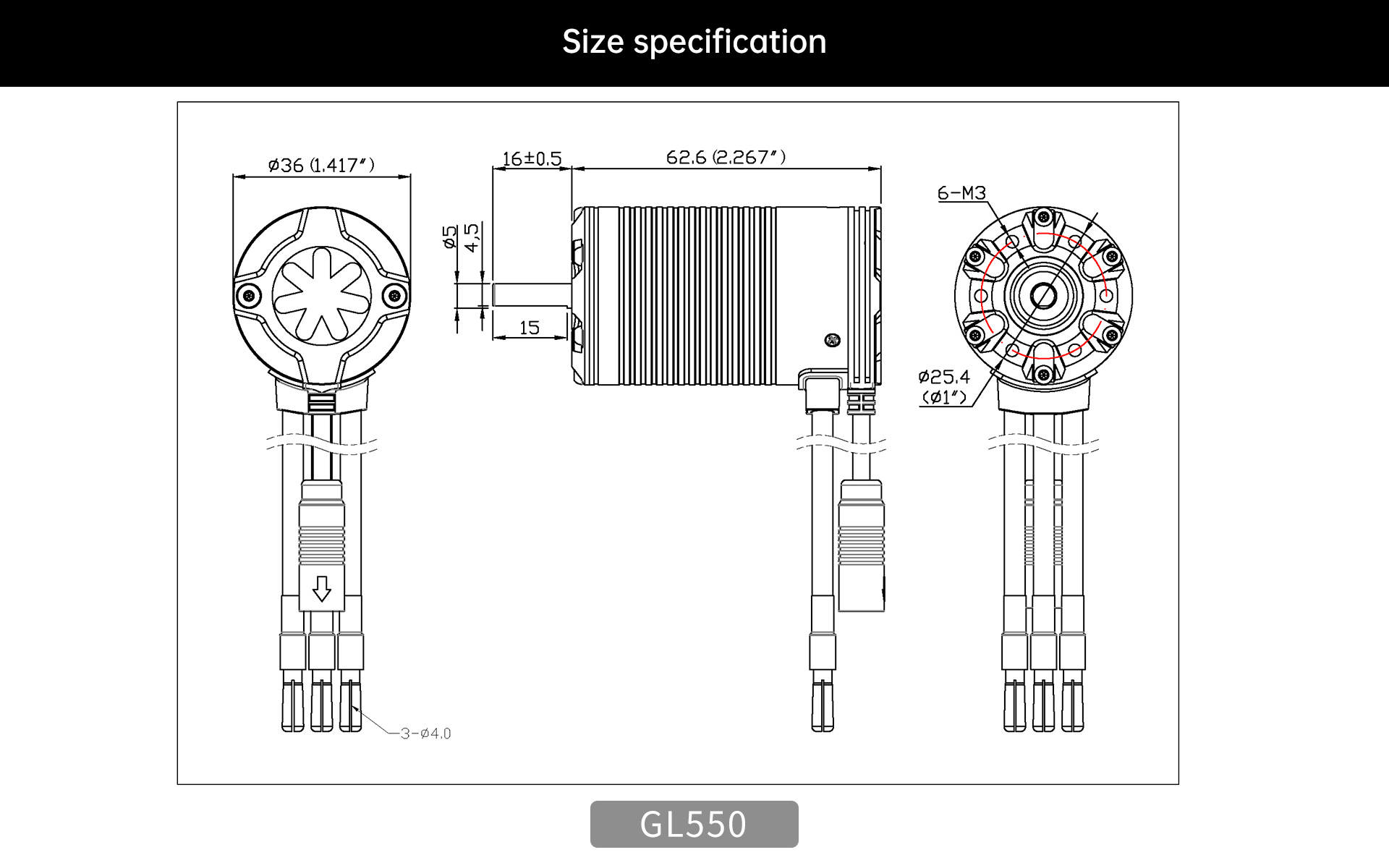

  • GL550 Outer Diameter/Length

    Ø36mm(1.417in)/L62.6mm(2.465in)

  • GL550 Shaft Diameter/End Length of

    Ø5mm(0.197in)/L16mm(0.63in)

  • GL550 Bearing Specification

    D13*d5*T4 Front end (Driving end)

  • GL550 Bearing Specification

    D15*d6*T5 Rear end (Terminal)

  • GL550 Pairs of Poles

    2 Pairs of poles

  • GL550 Application

    On-road/Off-road/Short course

  • Model

    GL540L

  • GL540L-KV

    1200KV / 2100KV / 2800KV

  • GL540L-1200KV Cells

    2-4S

  • GL540L-2100KV Cells

    2-4S

  • GL540L-2800KV Cells

    2-4S

  • GL540L No-load Current

    1200KV≤1.6A / 2100KV≤2.6A / 2800KV≤3.5A

  • GL540L Outer Diameter/Length

    Ø36mm(1.417in)/L62.6mm(2.465in)

  • GL540L Shaft Diameter/End Length of

    Ø5mm(0.197in)/L16mm(0.63in)

  • GL540L Bearing Specification

    D13*d5*T4 Front end (Driving end)

  • GL540L Bearing Specification

    D15*d6*T5 Rear end (Terminal)

  • GL540L Pairs of poles

    2 Pairs of poles

  • GL540L Application

    Short course/Trucks/Monster

Functions and features
