E3652/E3665 Brushless Motor For RC Cars
Name
  • E3652/E3665 Brushless Motor For RC Cars
Type
  • BLDC
Parameters
  • Model

    E3652

  • E3652-KV

    5400KV / 4100KV / 3300KV

  • E3652-5400KV Cells

    2S

  • E3652-4100KV Cells

    2-3S

  • E3652-3300KV Cells

    2-3S

  • E3652 No-load Current

    5400KV≤6.5A / 4100KV≤5.0A / 3300KV≤3.9A

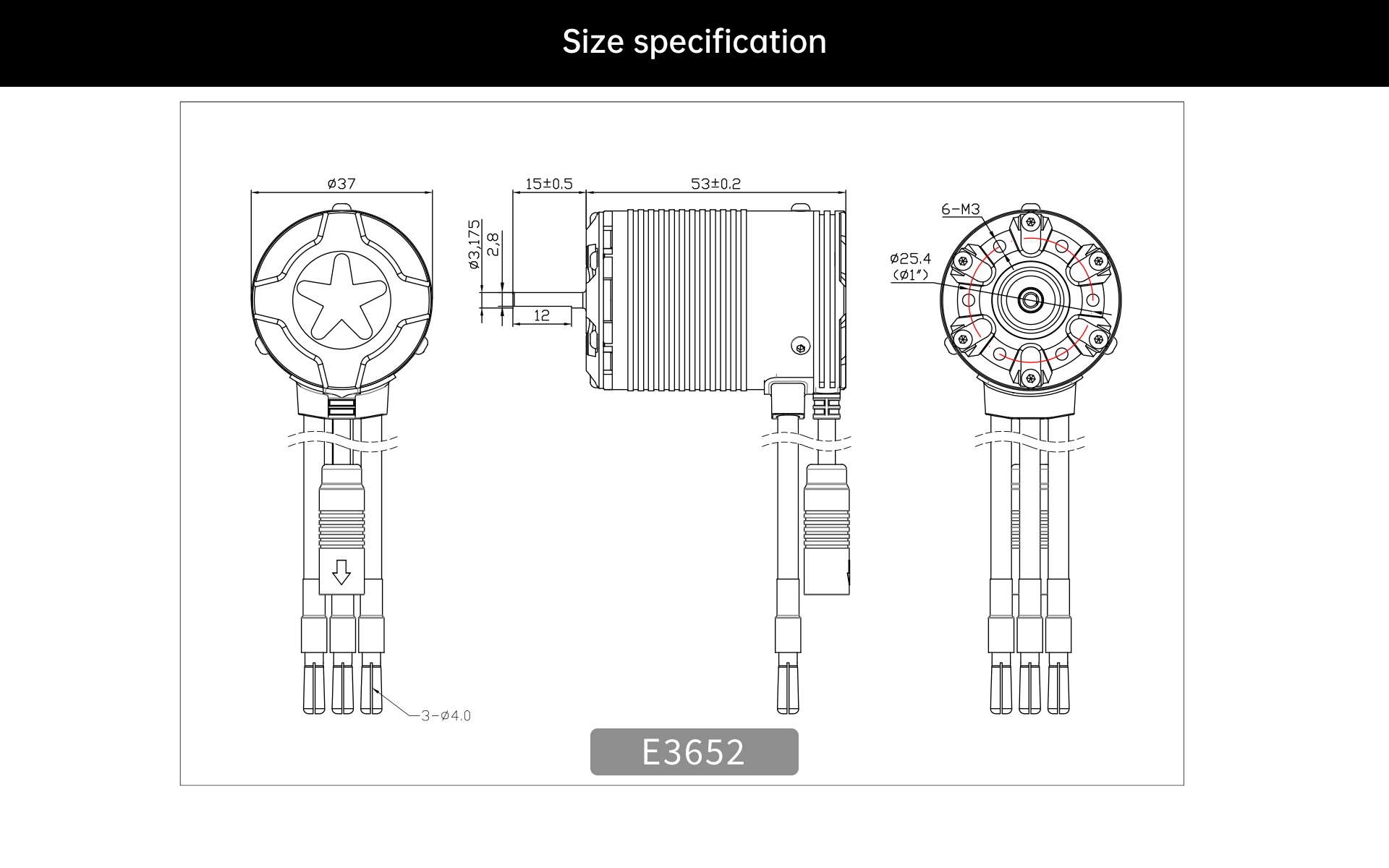

  • E3652 Outer Diameter/Length

    Ø37mm(1.46in)/L53mm(2.09in)

  • E3652 Shaft Diameter/End Length of

    Ø3.175mm(0.125in)/L15mm(0.59in)

  • E3652 Bearing Specification

    D13*d5*T4 Front end (Driving end)

  • E3652 Bearing Specification

    D11*d5*T5 Rear end (Terminal)

  • E3652 Pairs of Poles

    2 Pairs of poles

  • E3652 Application

    On-road/Off-road/Short course

  • Model

    E3665

  • E3665-KV

    4000KV / 3300KV / 2500KV

  • E3665-4000KV Cells

    2-3S

  • E3665-3300KV Cells

    2-3S

  • E3665-2500KV Cells

    2-4S

  • E3665 No-load Current

    4000KV≤8.0A / 3300KV≤7.0A / 2500KV≤5.0A

  • E3665 Outer Diameter/Length

    Ø37mm(1.46in)/L65.6mm(2.58in)

  • E3665 Shaft Diameter/End Length of

    Ø5mm(0.2in)/L16.5mm(0.65in)

  • E3665 Bearing Specification

    D13*d5*T4 Front end (Driving end)

  • E3665 Bearing Specification

    D11*d5*T5 Rear end (Terminal)

  • E3665 Pairs of poles

    2 Pairs of poles

  • E3665 Application

    Short course/Trucks/Monster
