1. Working voltage: AC15~40V(50HZ/60HZ)
2. Rated current: 8A
3. Operating temperature: -40 ~ 85℃
4. Working humidity: 95% Max
5. Dimensions:

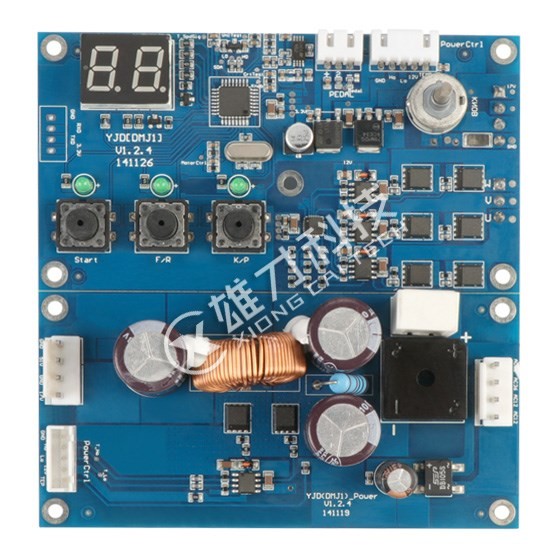

-Control panel 70 * 48.5 * 15 mm
-Power plate 100 * 65 * 39 mm
6. Protection type: undervoltage, overvoltage, overcurrent, undertemperature, overtemperature,
-Blocking, reverse connection, short circuit protection
7. Speed closed loop PID control
8. Potentiometer stepless speed regulation, positive and negative control, foot control
9. Adjustable speed from 1000RPM to 50000RMP，Every 1000 turns one gear
