1. Working voltage: DC96V (Min 24V, Max 150V)
2. Rated current: 13.5A
3. Working temperature: - 30- 50 ℃
4. Working humidity: maximum 95%
5. Overall dimension:
- PCBA:115 x96x39mm

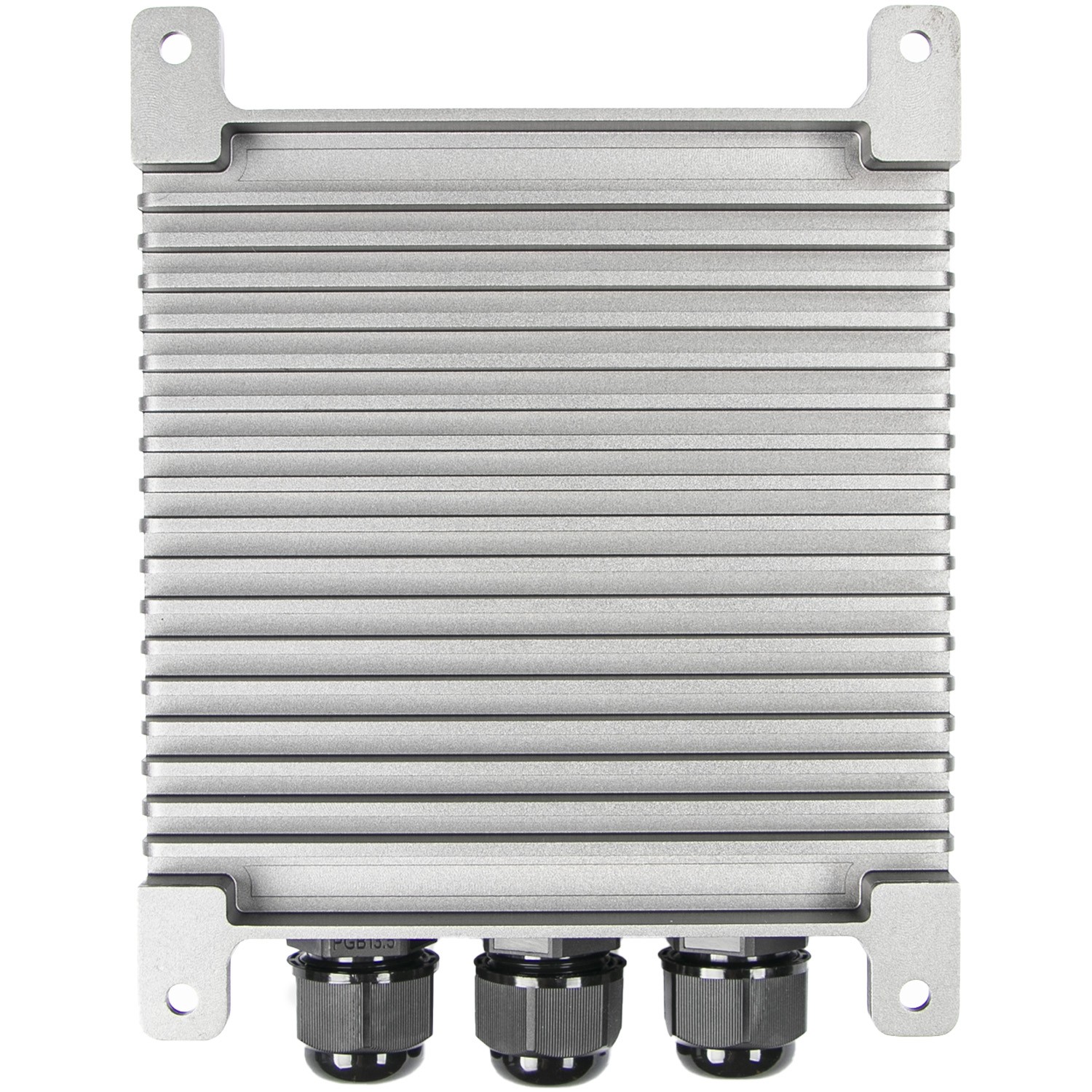

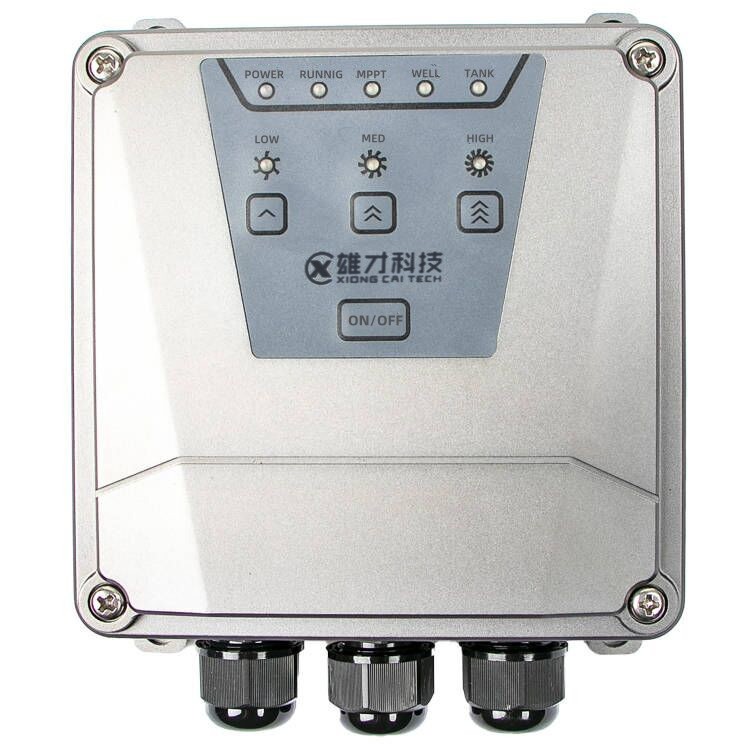

- Finished product (alumnium case): 144xl70x61 mm
6. Protection type: full water, water shortage, undervoltage, overvoltage, overcurrent, overtemperature, stalling, reverse Voltage Protection,
7. Start stop and speed control
8. Suitable for solar panel power supply, with built-in MPPT function.
9. With GPRS interface, can be monitored by mobile or computer.
10. Protective grage for finished product: IP65
11. Application:
- Solar automatic water level controller
- Automatic irrigation and fertilization
