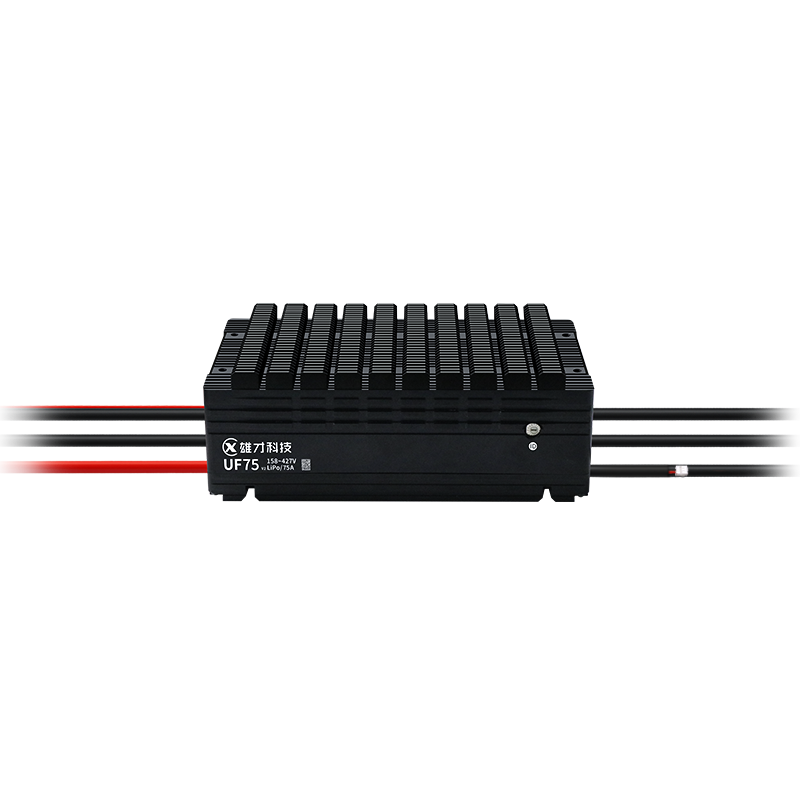

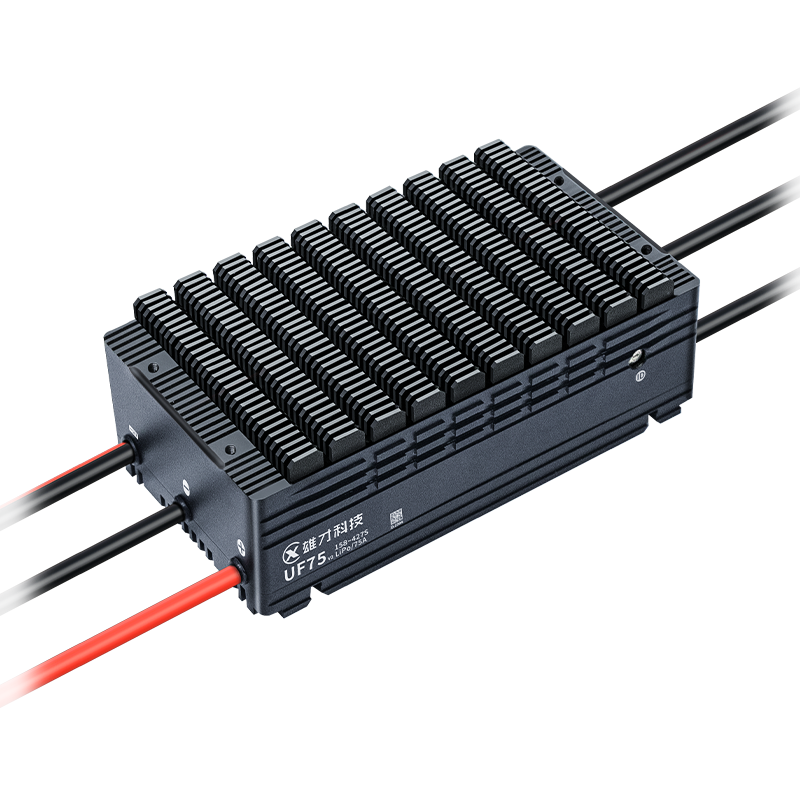

UF75 ESC FOR DRONE

Specifications

Style#	UF75 v2	Battery Section	48-96S	Recommended Battery	24S
Continuous Current	75A (under good cooling conditions)	Current limiting	75A	Online Upgrade & BEC	5V/200MA output
PWM Input Signal Voltage	3.3V/5V (compatible)	Accelerator Pulse Width	1050us - 1940us	Compatible Signal Freq	50-500Hz
Weight (W/O wires)	around 986g	Power Line & Motor line	10AWG	Size(LWH) /mm	17999.666.0
Working Temperature	-20~65 ℃	5V/ 300MA Output	available	CAN communication	available (to be matched w/ flight controller)
Overcurrent Protection	available	Short Circuit Protection	available	Stall Protection	available
Overvoltage Protection	available	Temperature Protection	available	Throttle Loss Protection	available
Boot Protection	available	Error Signal Output	available	Speed Signal Output	available
