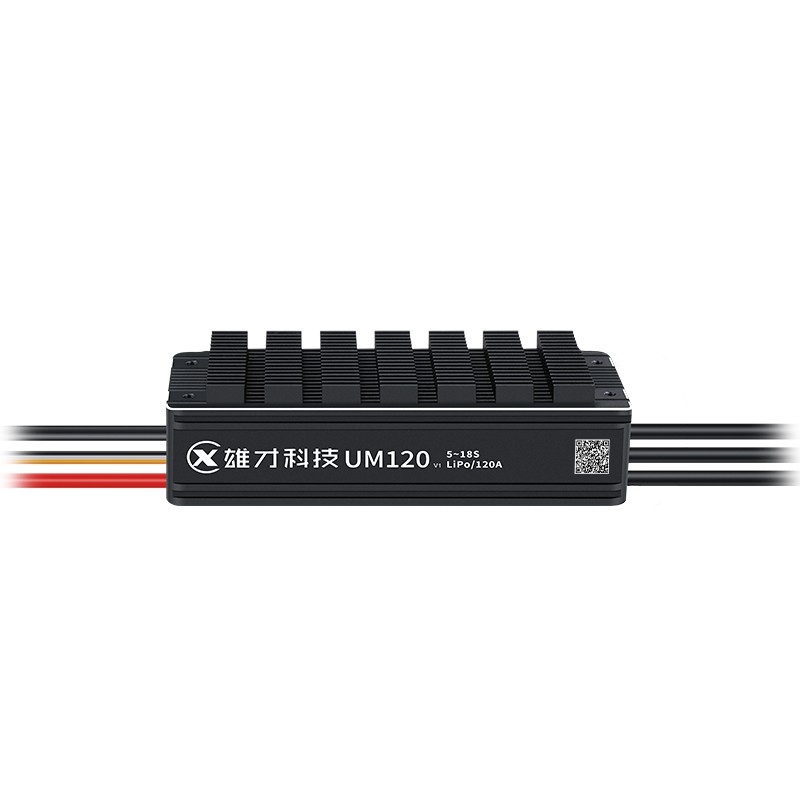

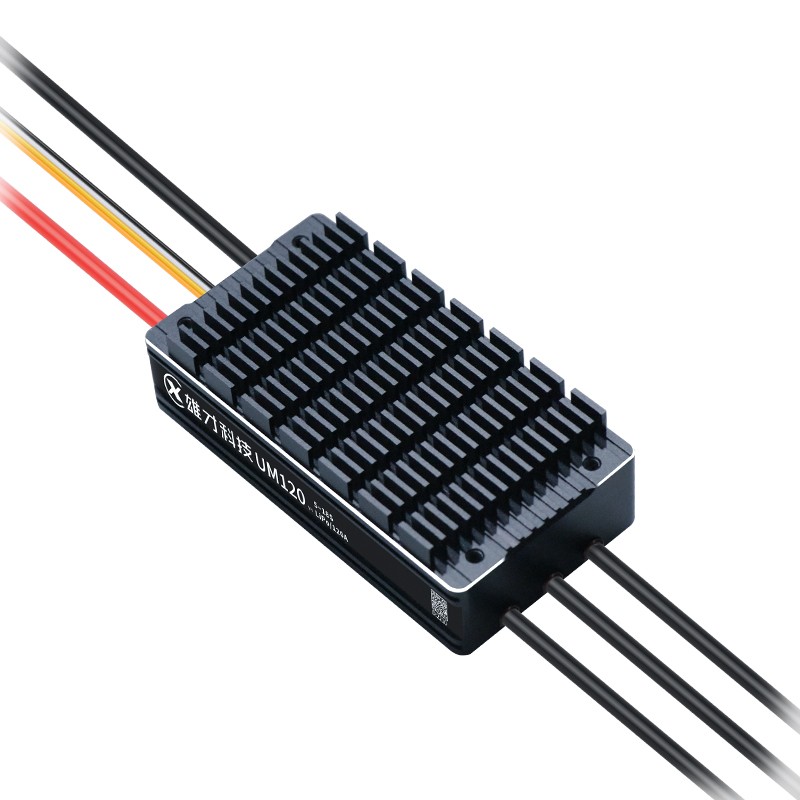

UM120 ESC FOR DRONE

Specifications

Style#	UM120 v1	Battery Section	5-18S	Recommended Battery	18S
Continuous Current	10A (under good cooling conditions)	Instant Current	120A	Online Upgrade	Nil
PWM Input Signal Voltage	3.3V/5V (compatible)	Accelerator Pulse Width	1050us - 1940us	Compatible Signal Freq	50-500Hz
Weight (W/O wires)	around 200g	Protective Grade	IP67	Size(LWH) /mm	98.050.027.9
Working Temperature	-20~65 ℃	Power Line & Motor line	10AWG &12AWG	BEC	Nil
Stall Protection	available	Short Circuit Protection	available	Throttle Loss Protection	available
Overvoltage Protection	available	Temperature Protection	available	Speed Signal Output	available
Boot Protection	available	Error Signal Output	available
