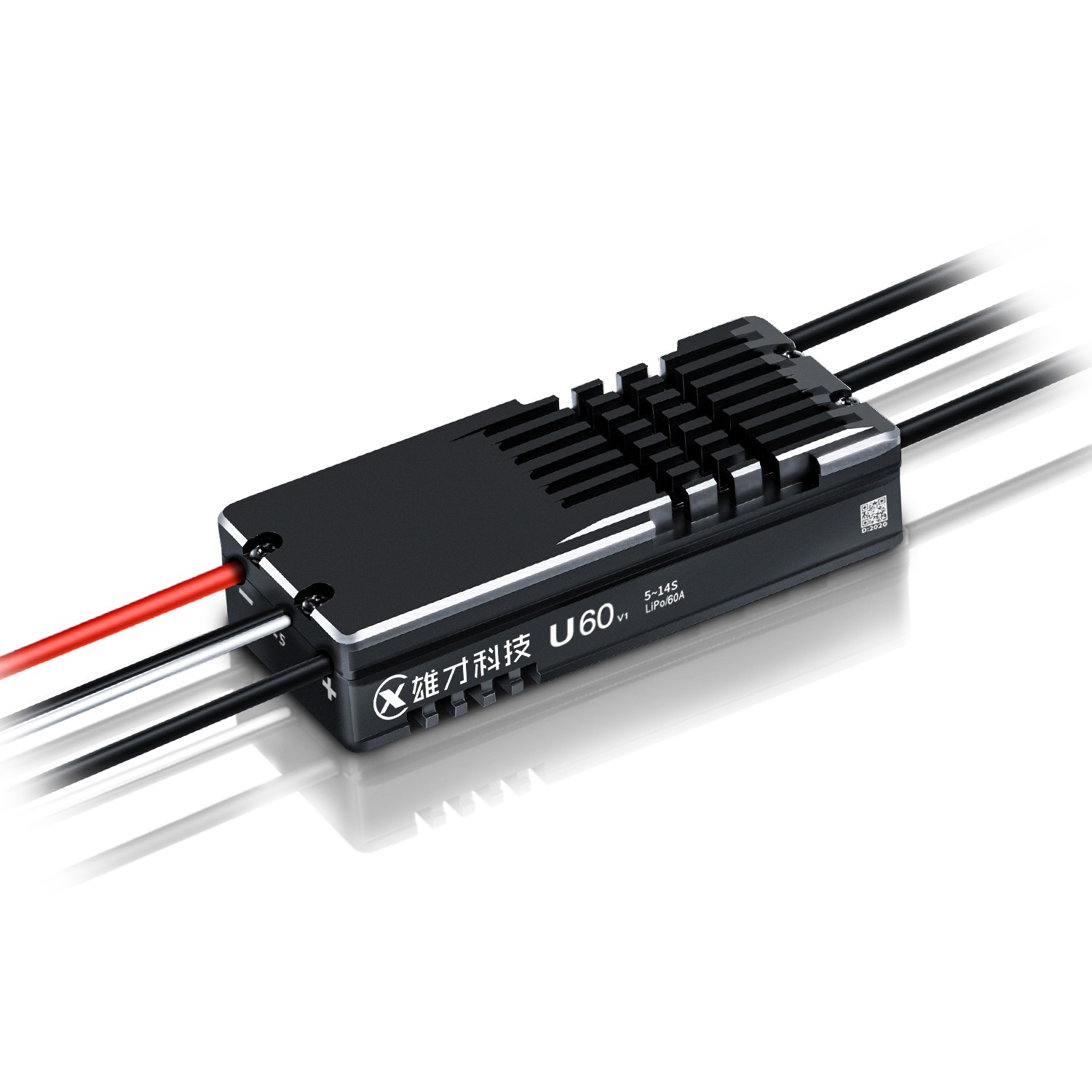

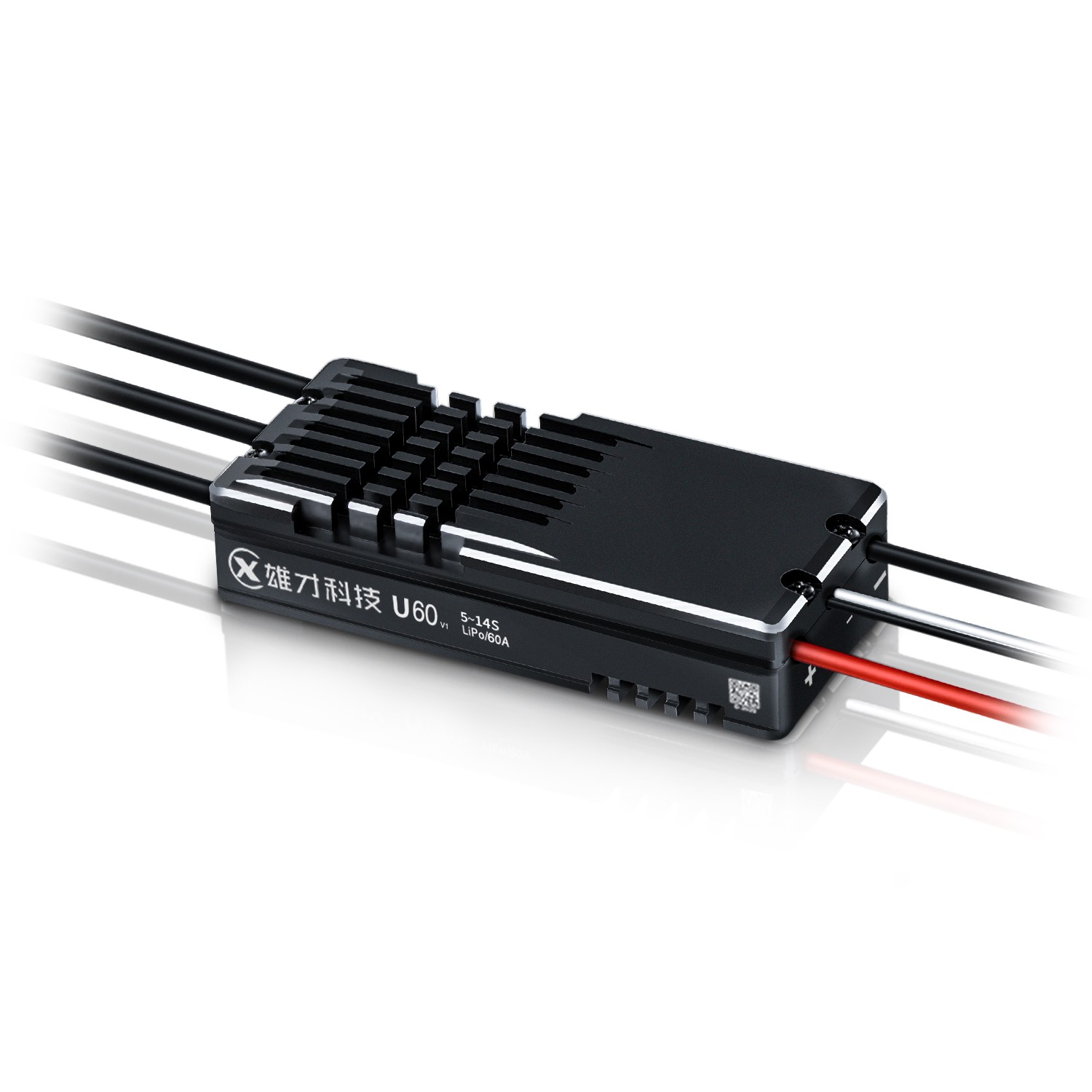

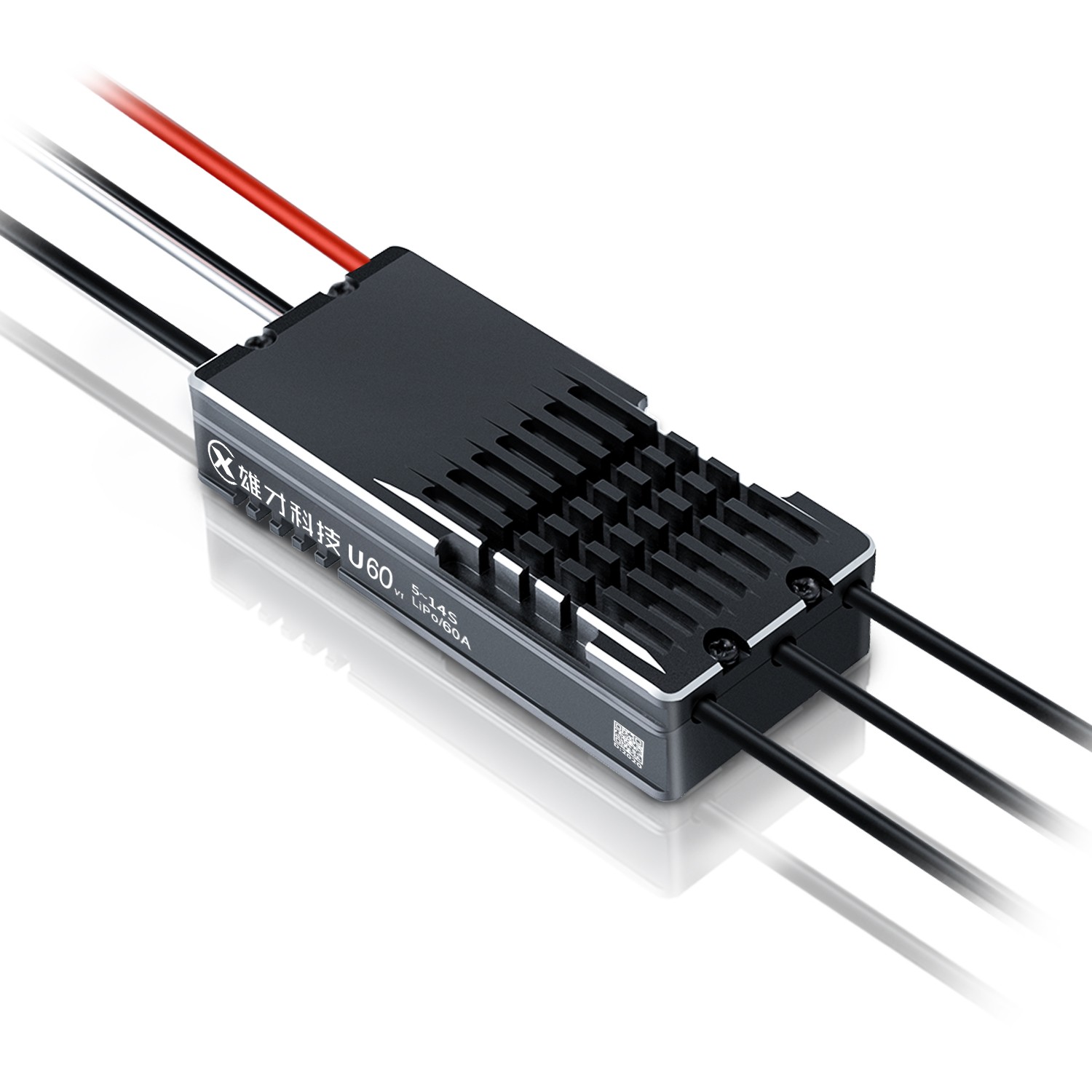

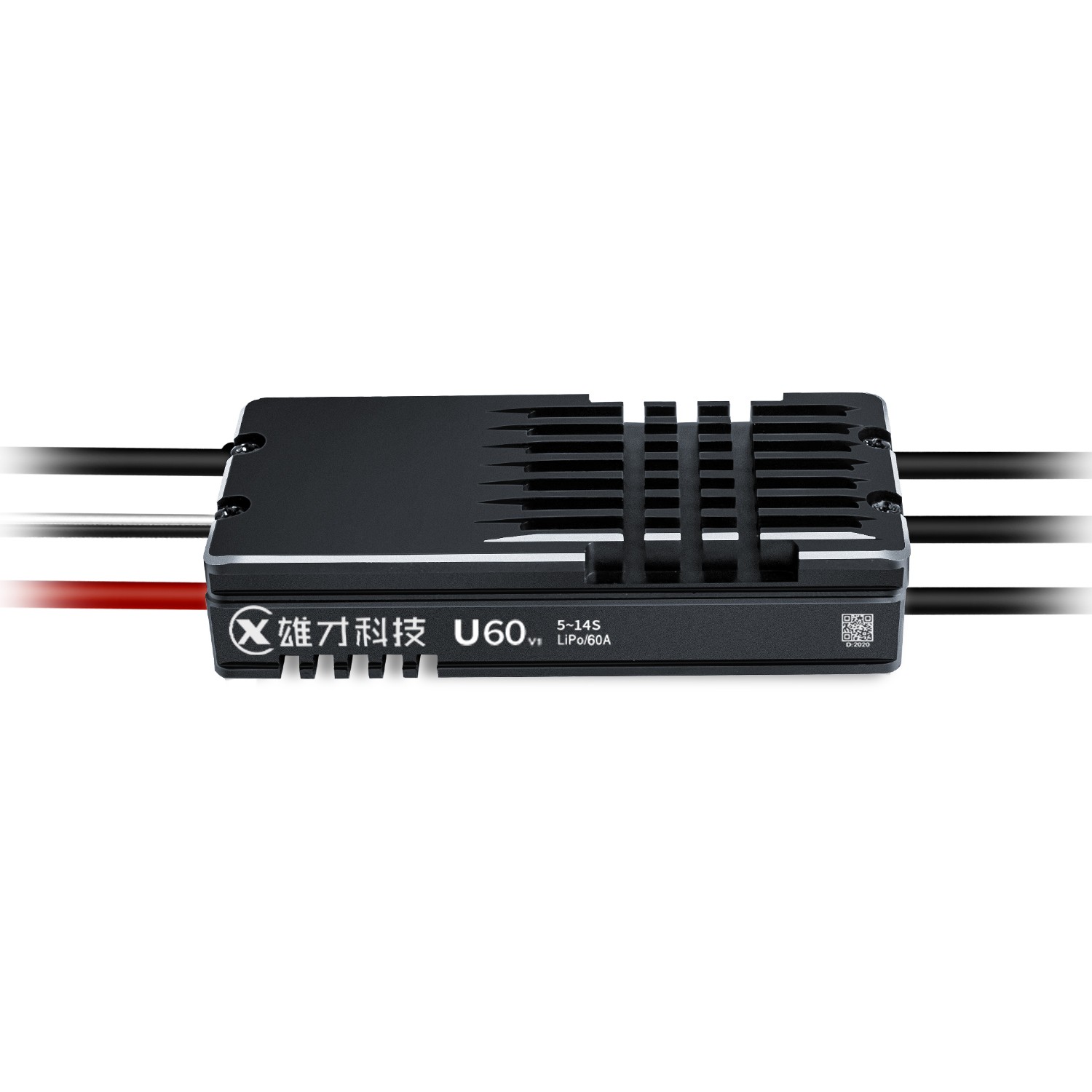

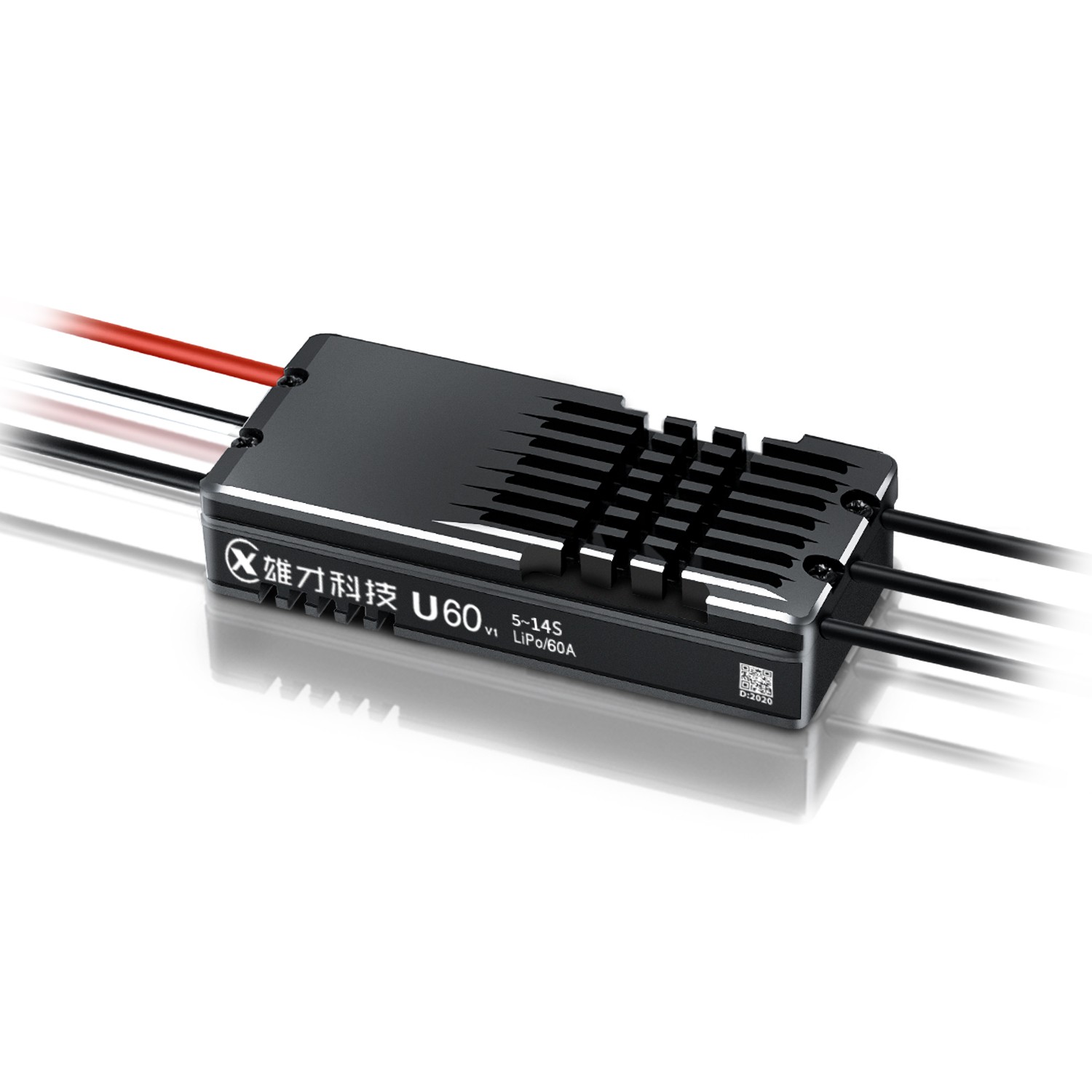

U60 ESC FOR DRONE

Specifications

Style#	U60 v1	Battery Section	5-14S	Recommended Battery	12S
Continuous Current	60A (under good cooling conditions)	Instant Current	80A (under good cooling conditions)	Online Upgrade	Nil
PWM Input Signal Voltage	3.3V/5V (compatible)	Accelerator Pulse Width	1050us - 1940us	Compatible Signal Freq	50-500Hz
Weight (W/O wires)	around 42.5g	Protective Grade	IPX4	Size(LWH) /mm	70.231.016.0
Working Temperature	-20~65 ℃	Power Line & Motor line	14AWG	BEC	Nil
Overcurrent Protection	available	Short Circuit Protection	available	Stall Protection	available
Overvoltage Protection	available	Temperature Protection	available	Throttle Loss Protection	available
Boot Protection	available	Error Signal Output	available	Speed Signal Output	available
