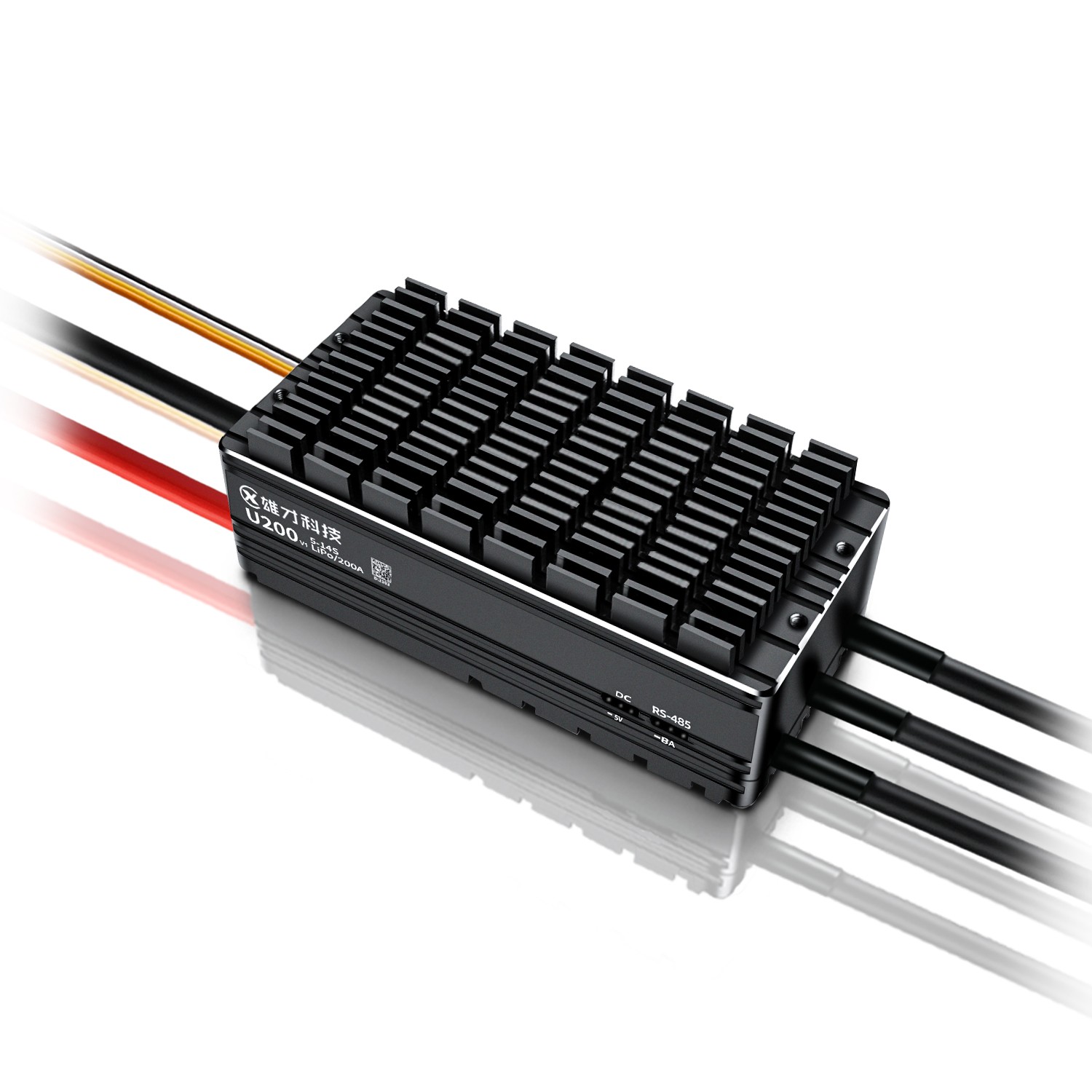

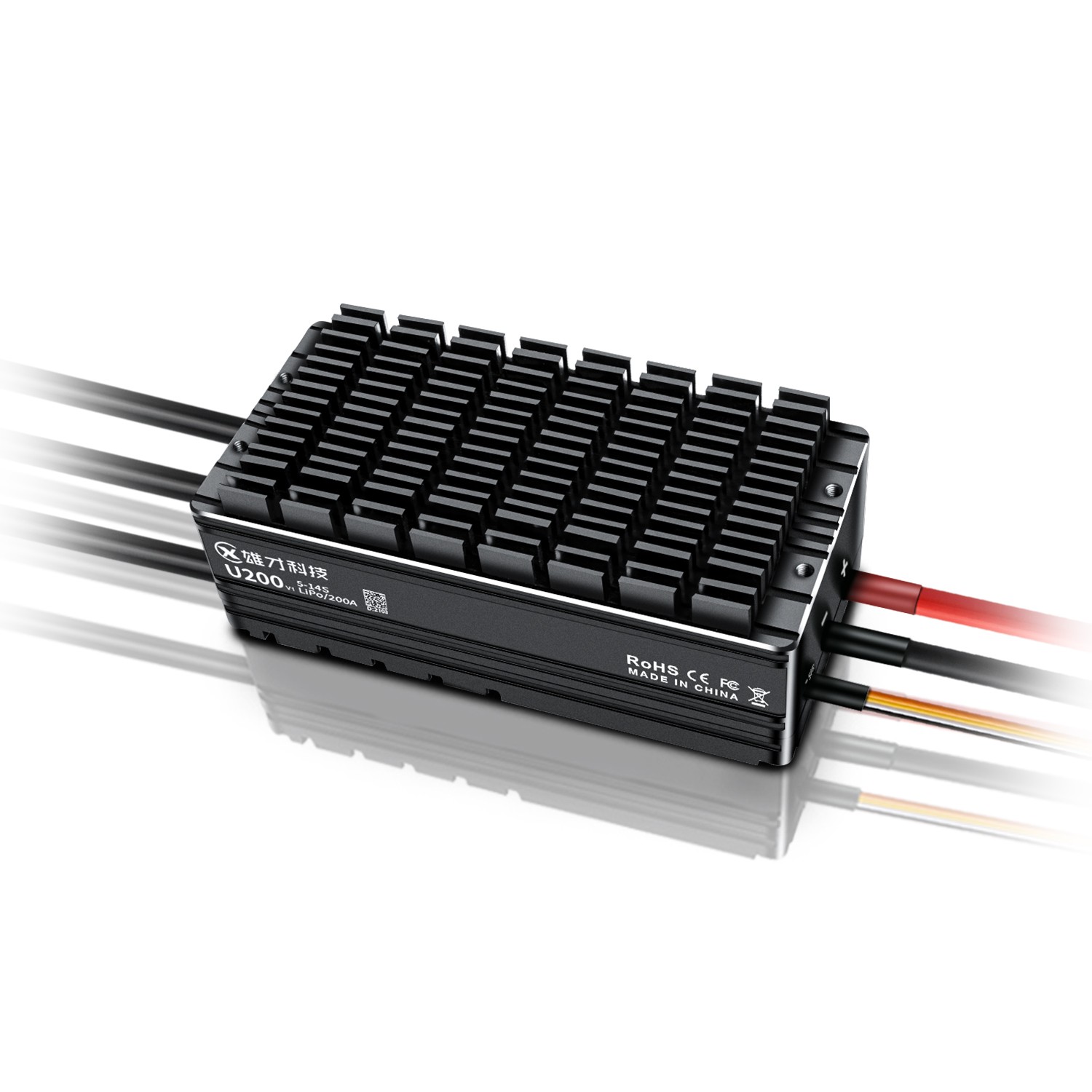

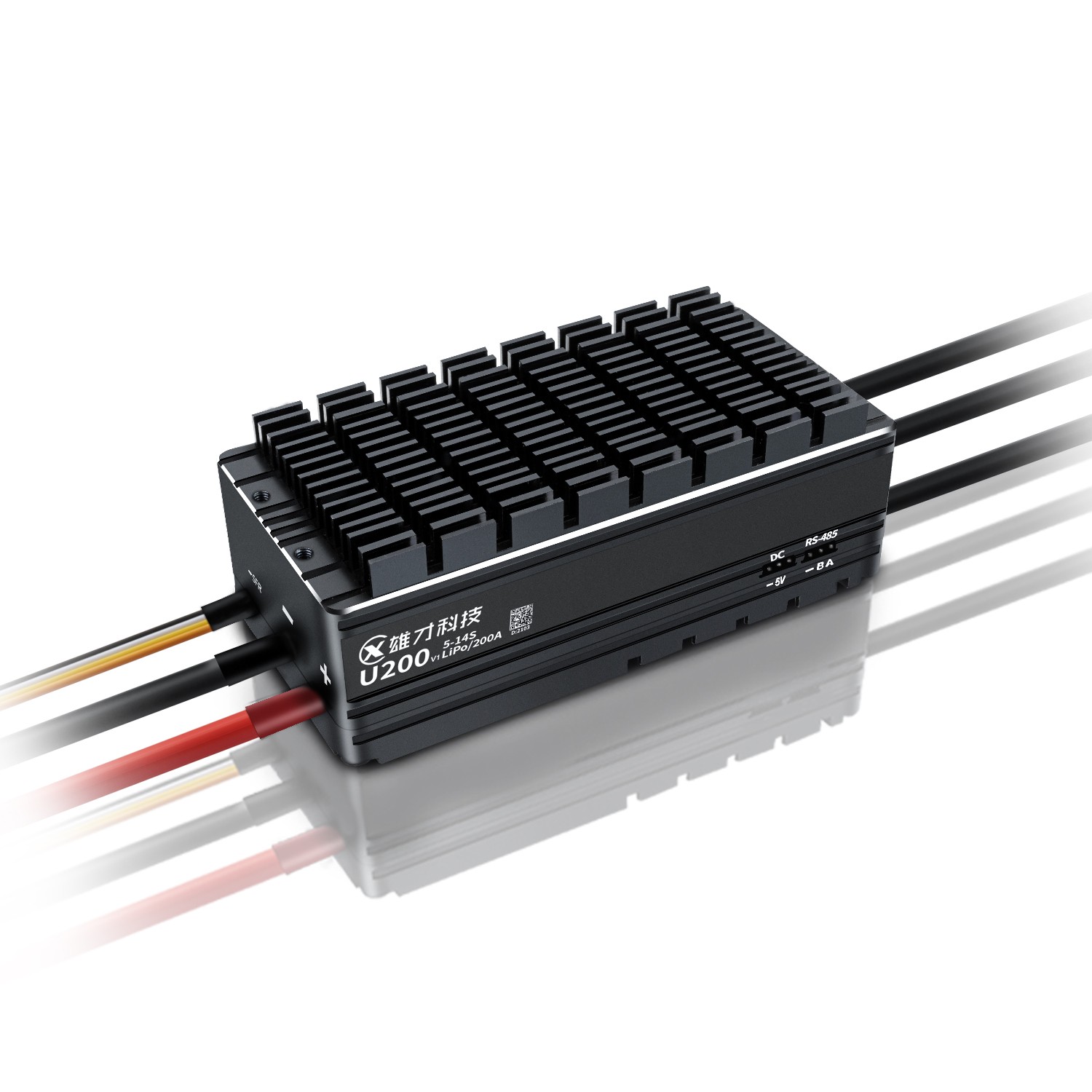

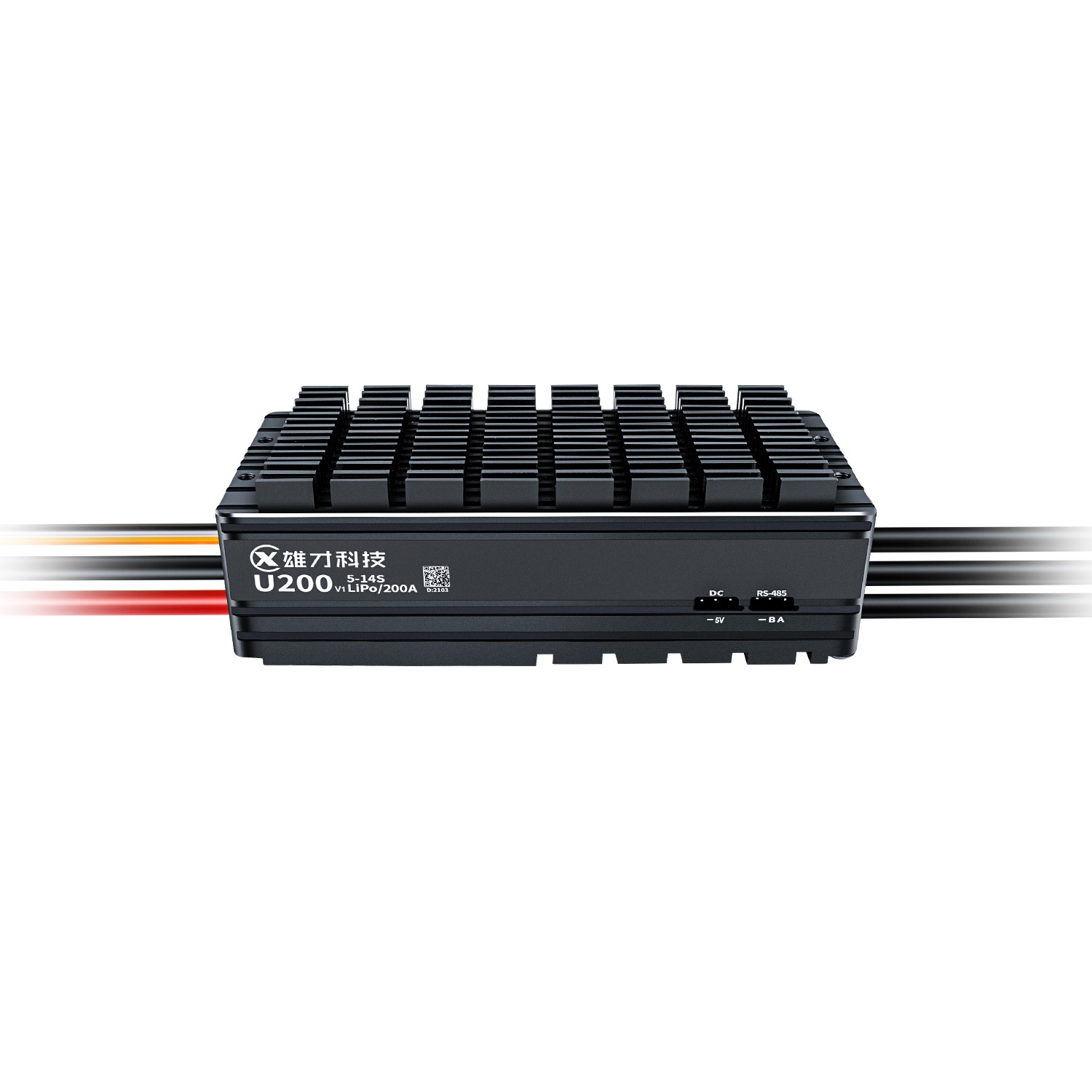

U200 ESC FOR DRONE

Specifications

Style#	U200 v1	Overcurrent Protection	available	Battery Section	5-14S
Short Circuit Protection	available	Recommended Battery	12S	Stall Protection	available
Continuous Current	200A (under good cooling conditions)	Overvoltage Protection	240A (under good cooling conditions)	Temperature Protection	defa
Online Upgrade	Nil	Throttle Loss Protection	available	PWM Input Signal Voltage	3.3V/5V (compatible)
Boot Protection	available	Accelerator Pulse Width	1050us- 1940us	Error Signal Output	available
Compatible Signal Freq	50-500Hz	Speed Signal Output	available	Weight (W/O wires)	around 320g
5V/ 300MA Output	available	Working Temperature	-20~65 ℃	RS485 Communication	available (to be matched w/ flight controller)
BEC	Nil	Power Line & Motor line	8AWG	Size(L WH) /mm	117.556.342.8
