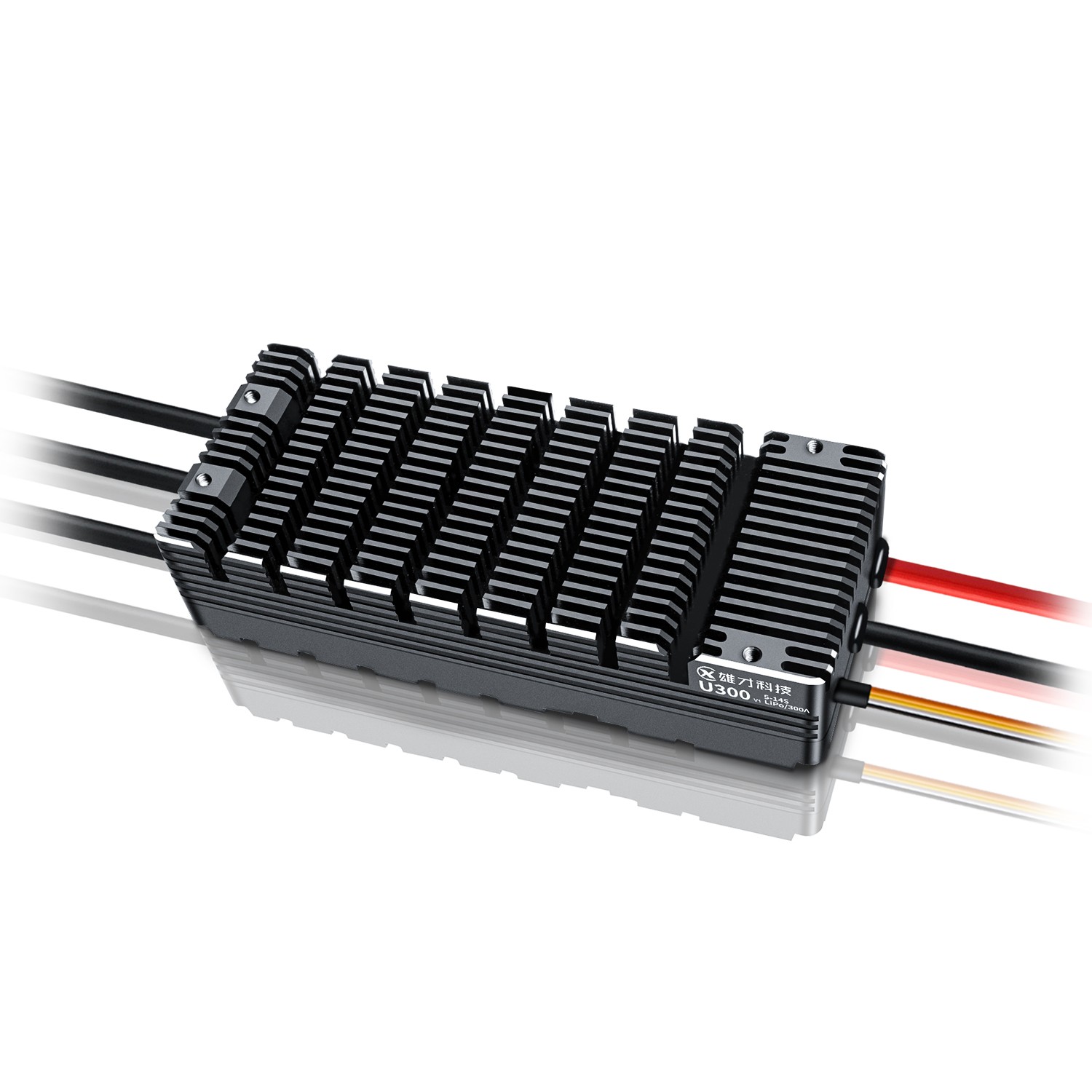

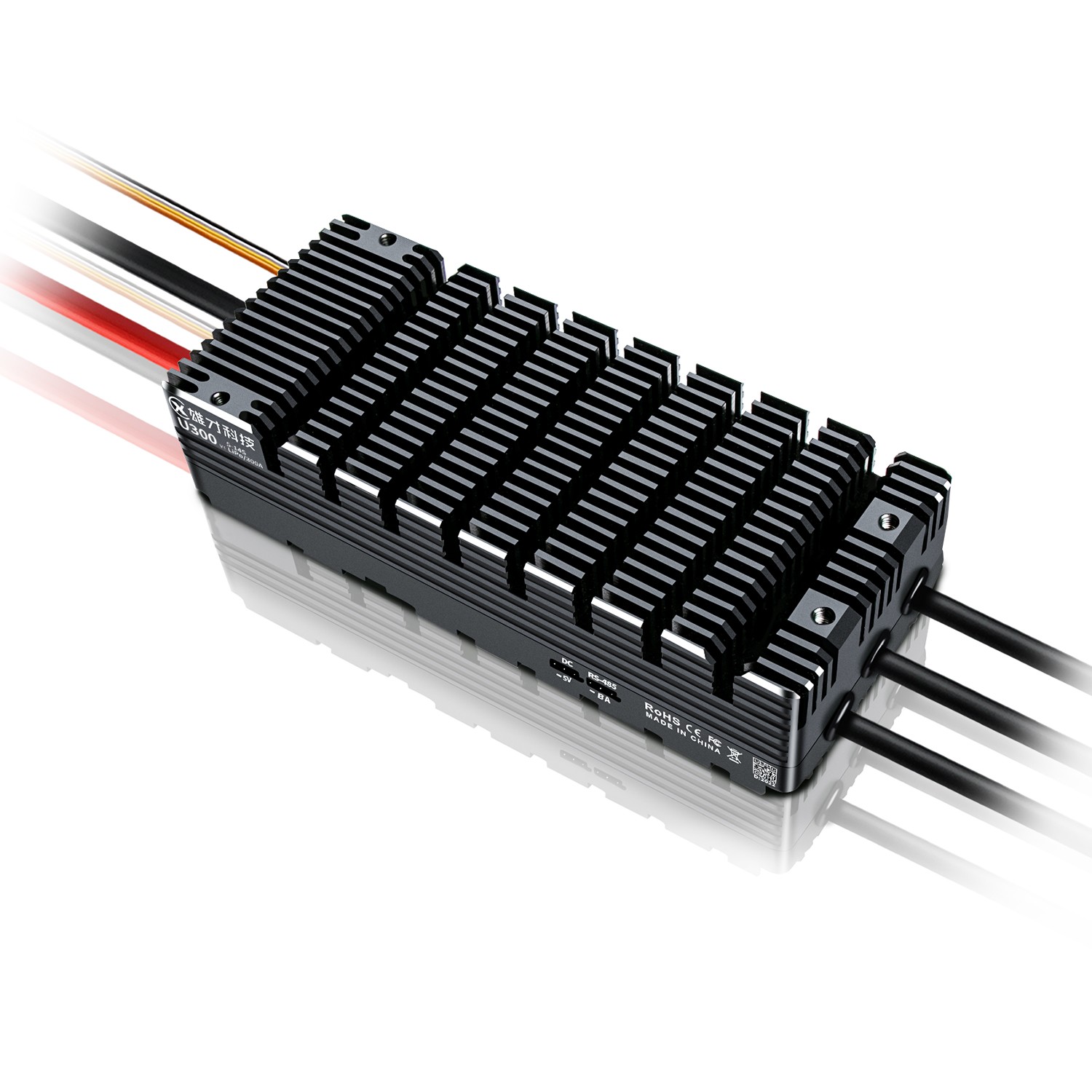

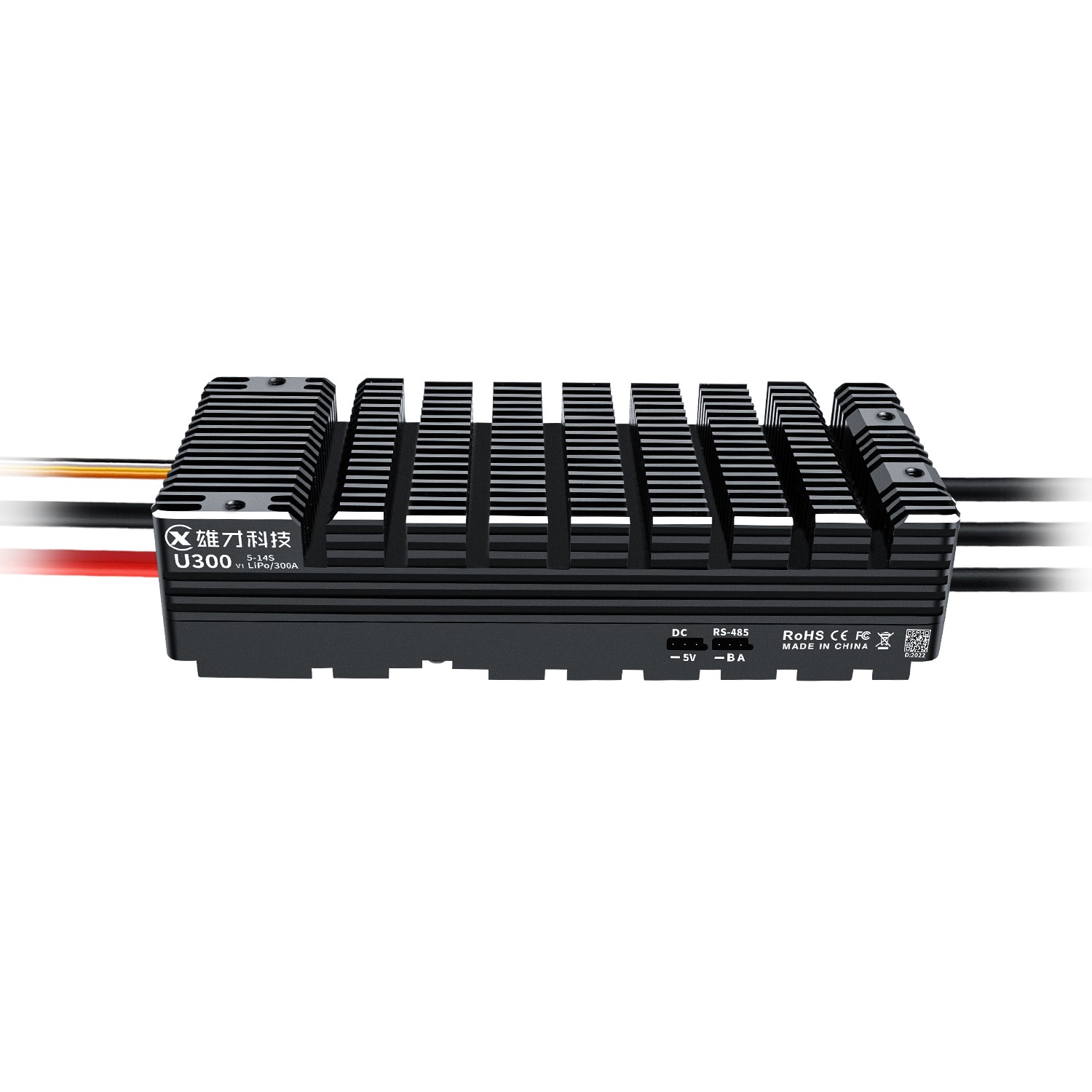

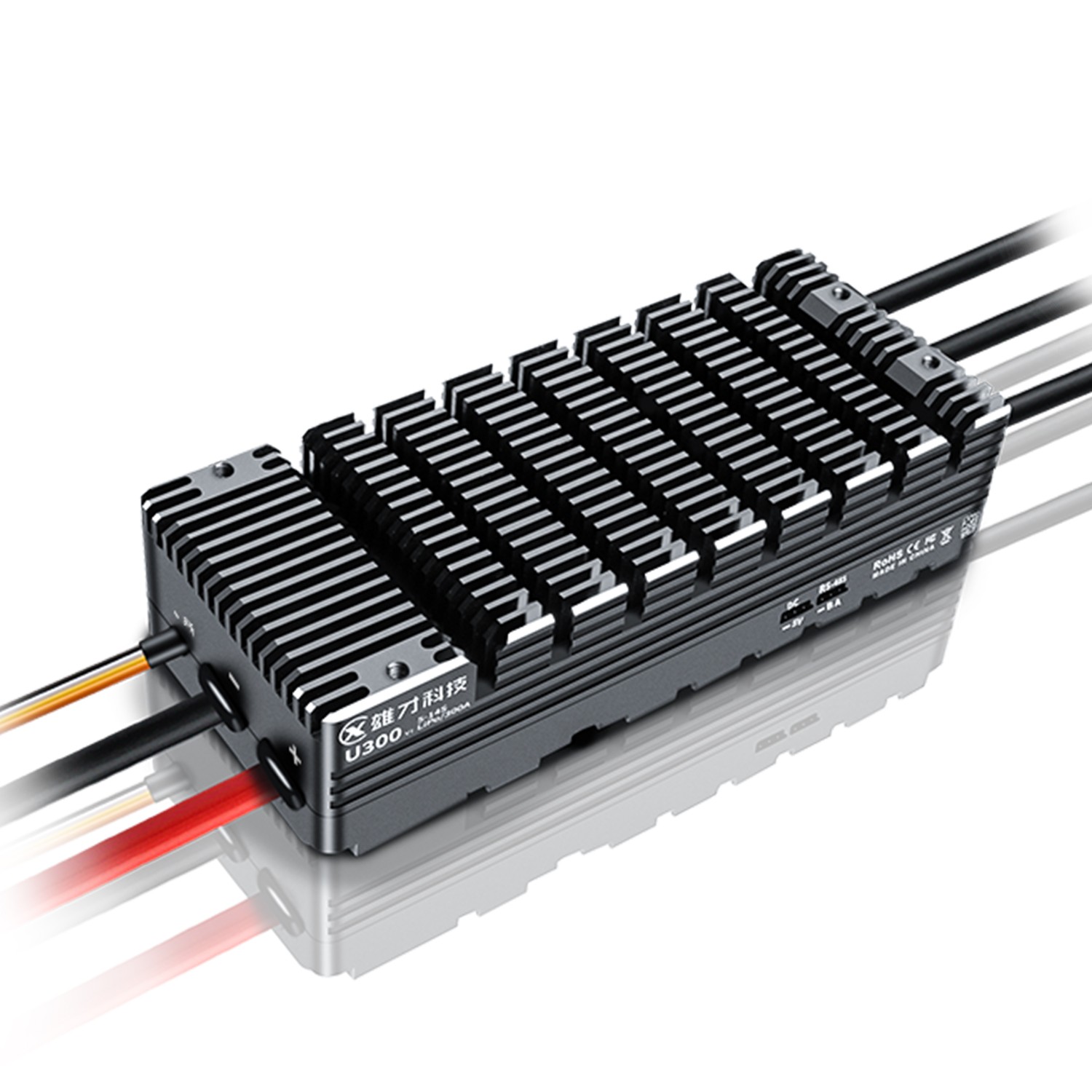

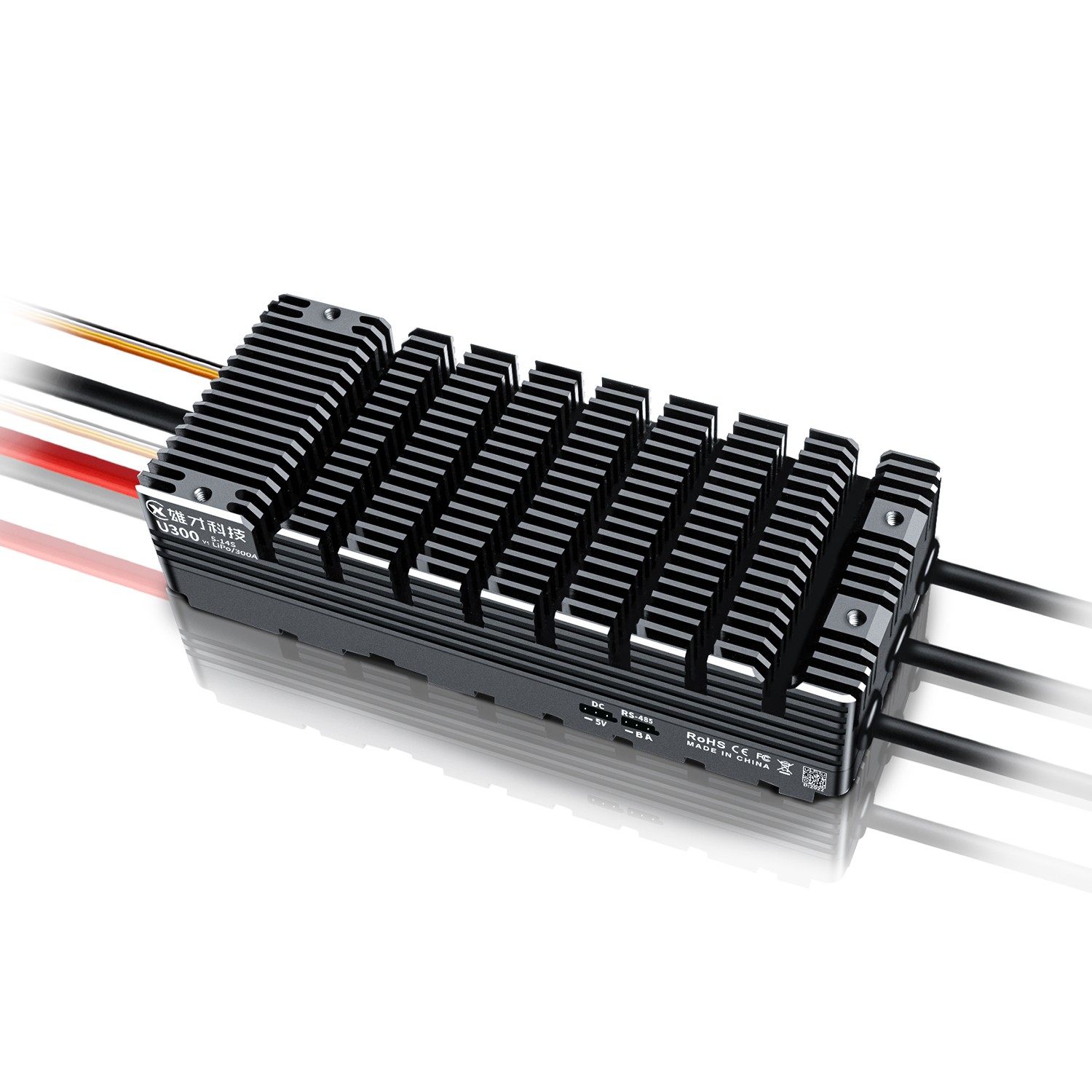

U300 ESC FOR HEAVY LIFT DRONE

Specifications

Style#	U300 v1	Battery Section	5-14S	Recommended Battery	12S
Continuous Current	300A (under good cooling conditions)	Instant Current	320A (under good cooling conditions)	Online Upgrade & BEC	Nil
PWM Input Signal Voltage	3.3V/5V (compatible)	Accelerator Pulse Width	1050us - 1940us	Compatible Signal Freq	50-500Hz
Weight (W/O wires)	around 645g	Power Line & Motor line	7AWG	Size(LWH) /mm	1767342.8
Working Temperature	-20~65 ℃	5V/ 300MA Output	available	RS485 communication	available (to be matched w/ flight controller)
Overcurrent Protection	available	Short Circuit Protection	available	Stall Protection	available
Overvoltage Protection	available	Temperature Protection	available	Throttle Loss Protection	available
Boot Protection	available	Error Signal Output	available	Speed Signal Output	available
